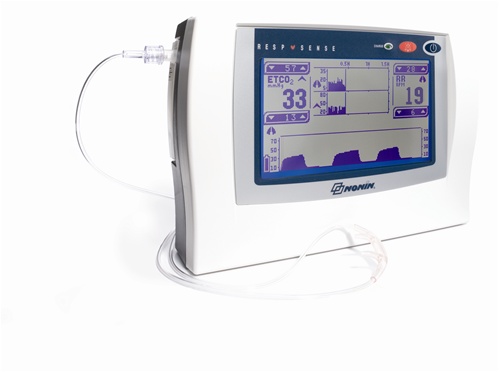

Nonin RespSense Capnograph / CO2 Monitor
Details
The RespSense touch-panel display monitor offers Nonin sidestream EtCO2 technology for a wide range of clinical settings and for both intubated and non-intubated patients. Portable, accurate and cost-effective, RespSense is perfect for sleep labs, procedural sedation, emergency transport (EMS), home care, or in clinical settings where fast, easy EtCO2 monitoring is required. Features and Benefits ISO approved for EMS transport. Widescreen touch-panel backlit LCD display. Display shows numerical EtCO2 and respiratory rate. 1.5 hours of EtCO2 and respiration rate waveform trending. Backlit LCD display. Audible and visual alarms. Data output via RS-232 port. Wide range of optional accessories including: Full line of infant to adult SpO2 sensors (reusable and disposable) and sampling lines Carrying case Adjustable mounting clamp TrendSense memory module, download cable and software Sens DAC Digital to analog converter cables for pulse and capnography
Additional Information
Materials Included 1 RespSense 3 Filters 3 Adult CO2 Sampling Nasal Cannulas 1 CO2 Sample Line 1 Straight T-Connector 1 AC/DC Battery Charger 1 Manual (CD-ROM)
Tech Specs
Technical Specifications Battery charger: 120 VAC, 60 Hz for USA / Canada Power consumption: 3.6 W at battery operation 12 W with battery charger Input: 12 VDC, 800mA Dimensions: 200 (W) x 135 (H) x 50 (D) mm (7.9 x 5.3 x 2 inches) Weight: 800 grams (1.8 lbs) Display/Screen Size: 3.5" x 5.5" Pump flow: 75 ml/min Flow accuracy: ±15ml/min Battery Type: Lithium Ion internal battery, rechargeable Battery capacity: 10 hours approximately Charging time: 17 hours from empty to full Respiration range: 3 – 80 respirations/min Update frequency: Once every breath No breath after 25 seconds Respiration accuracy: 3 – 80 respirations/min ± 2 51 – 80 respirations/min ± 5 EtCO2/CO2 range: 0 – 9.9 kPa, or 0 – 99 mmHg EtCO2/CO2 accuracy: ±0.2 kPa / ±2 mmHg, +6% of reading (EtCO2/CO2 reading reaches its steady state accuracy 10 minutes after power up) Update frequency: Once every breath Trend length: 1.5 hours
Shipping Information
Please Inquire
Warranty & Returns
3-year warranty on main unit. 1-year warranty on battery charger.
