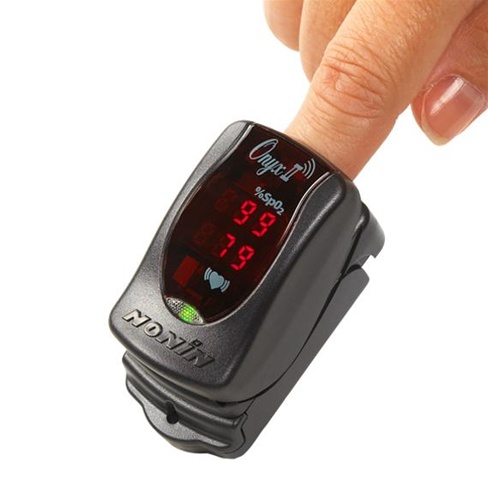

The first wireless fingertip pulse oximeter! With the increased need for remote disease management, there is an opportunity to provide oximetry monitoring solutions to simplify the exchange of secure information. The integration of interoperable, Bluetooth wireless technology in health monitoring devices will allow patients, along with their clinicians, to monitor vital signs as they go about their daily lives. Breakthrough devices such as the Onyx II 9560 will enable clinicians to remotely monitor patients with chronic diseases such as Chronic Obstructive pulmonary Disease (COPD), Congestive Heart Failure (CHF) or Asthma. Wireless oximetry gives patients a new level of freedom and control. Features and Benefits Bluetooth 2.0 Wireless Technology provides a secure wireless connection for vital information exchange. Extremely versatile, it easily connects to communication devices (cell phones, PDAs, PCs, etc.). More importantly, the 9560 is designed to meet the requirements of the emerging Bluetooth Medical Device Profile (MDP), IEEE11073 and Continua compliances. Ensures ultimate versatility by allowing patients to take readings outside of the home and transmit the time-stamped data once they return. Provides up to a minimum of 20 single point measurements. SmartPoint Technology eliminates the guesswork of determining which oximetry values to use for analysis.
Technical Specifications Oxygen Saturation Display Range: 0-100% SpO2 Pulse Rate Display Range: 18-321 beats per minute (BPM) Oxygen Saturation Declared Accuracy Range (Arms*): 70-100% SpO2 ±2 digits Low Perfusion Oxygen Saturation Declared Accuracy Range (Arms*): 70-100% SpO2 ±2 digits Pulse Rate Declared Accuracy Range (Arms*): 20-250 BPM ±3 digits Low Perfusion Pulse Rate Declared Accuracy Range (Arms*): 40-240 BPM ±3 digits Measurement Wavelengths & Output Power **: Red: 660 nanometers @ 0.8 mW max average Infrared: 910 nanometers @ 1.2 mW max average * ± 1 Arms represents approximately 68% of measurements. ** This information is especially useful for clinicians performing photodynamic therapy. *** When the Model 9560 is transferred from a non-operating temperature/humidity condition, allow one hour of stabilization to operating temperature/humidity specifications prior to use.
