Nihon Kohden 2550 Interpretive Touch-Screen ECG Machine
Details

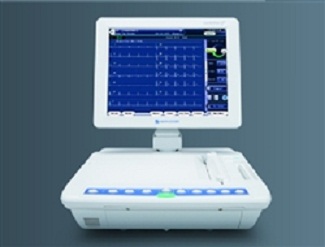

The 2550 Interpretive Touch-Screen ECG utilizes a swiveling 15” TFT-LCD display with touchscreen. The trace display and printout use the same size format. Includes a data-management system for storing and managing your ECG reports on a PC or network. Features and Benefits 12-channel ECG unit with 15 inch color TFT touchscreen display 3, 4, 6, 7, 12, 15, 18 channel ECG recording in real time ECG measurement program Interpretation program Mains or battery operation Manual and automatic recording 5 min. 12-channel rhythm analysis USB ports Network connection SD card inserts
Tech Specs
Technical Specifications Frequency Response: 0.05 to 150 Hz, (–3 dB) Common Mode Rejection Ratio: 110dB or more. Measurement Mode: Standard 12 lead, 15 lead or XYZ lead Time Constant: 3.2 s or more Sensitivity Precision: 10 mm/mV ±5% External Input: 2 channel, 10 mm/0.5 V Signal Output: 1 channel, 0.5 V/1 mV Recording Method: Thermal head Meandering: 0.5mm or less Paper Speed: 5,10,12.5,25,50 mm/s Recording Speed: 210 or 216 mm width, 30 m long Z-fold or roll type, 210 or 216 mm width, 100 or 300 m long Z-fold or roll type, outside the instrument
Shipping Information
Please Inquire
Warranty & Returns
4-year manufacturer's warranty
