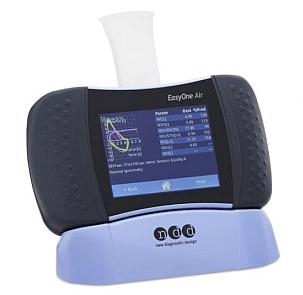

ndd EasyOne® Air Spirometer
Details
EasyOne® Air is a flexible, accurate and proven spirometry solution designed for healthcare providers large and small. Utilizing TrueFlow™ technology, this portable spirometer delivers reliable results without the need for calibration to ensure lifetime worry-free operation. Features and Benefits Color Touch Screen View real-time graphs, quickly enter patient data and easily navigate with the high resolution color touch screen in the EasyOne® Air. Easy and Ready to Use Regardless of location, environment or number of tests you will perform, EasyOne® Air will exceed your expectations. Reliable design tried and tested at large screening events Extremely robust TrueFlow™ measurement technology Performs up to 100 complete tests with one battery charge Can be used in portable or PC mode Use EasyOne® Air in portable mode, where the data is stored and the graph is displayed directly on the device, or use it in PC mode for more options. Portable or PC mode Stable Bluetooth connection Real-time curve display Real-time data transfer Connectivity to Printers, PCs and EMR Easily integrate EasyOne® Air into your existing clinical workflow. The device is equipped with Bluetooth and USB modules making connections to printers, a central database and EMR systems extremely easy and stable. Directly connect printers via USB or print via EasyOne Connect Synchronize data via USB or Bluetooth Integrate into all major EMR/EHR systems via HL7, XML, GDT, or API Reference projects to all major EMR systems available on request TrueFlow - Trusted Ultrasound Technology TrueFlow™ is the only ultrasound technology proven to be accurate for a lifetime for flow and volume measurements. Calibration-free with proven lifetime stability Contact and resistance-free measurement Outstanding accuracy and robustness Patented technology Customized Reports Customize reports and chose the parameters to be displayed. Choose which graphs to be displayed Color reports for better visibility Arrange graphs and parameters through EasyOne Connect Choose between Z-score, % predicted and LLN through EasyOne Connect QC-Grading and Result Interpretation Get automatic quality grading and interpretation based on NLHEP and ATS/ERS with the EasyOne® Air. Quality grades based on NLHEP and ATS/ERS for all tests ATS/ERS interpretation GOLD/Hardie, NICE, JRS and NLHEP
Additional Information
Materials Included EasyOne Air Spirometer Cradle USB Cable AC-Adapter Rechargeable lithium battery 4 Mouthpieces User Manual
Tech Specs
Technical Specifications Dimensions: Height: 3.4" Width: 6.1" Depth: 1.4" Data Management: EasyOne Connect Export: HL7, XML, GDT, with software Data Links: USB, Bluetooth Available Languages: English, French, German, Spanish Tests Storage: Up to 10,000 tests Age Range: Spirometry > 4 years Device classification: Type BF applied part Operating Conditions Temperature: 0 - 40 °C/ 32 - 104 °F Rel. Humidity: 5 - 90% Athmosph. Pressure: 700 - 1060 hPa Power Supply: 5 VDC, Standby 0.3W Rechargeable Battery: Exchangeable, 3.6 VDC Parameters FVC: BEV, EOTV, FEF10, FEF25, FEF 2575, FEF2575/FVC, FEF40, FEF50, FEF50/FVC, FEF60, FEF75, FEF80, FET, FET2575, FEV.25, FEV.5, FEV.5/FVC, FEV.75, FEV.75/FVC, FEV1, FEV1/FEV6, FEV1/FVC, FEV3, FEV3/FVC, FEV6, FVC, MEF20, MEF25, MEF40, MEF50, MEF60, MEF75, MEF90, MMEF, PEF, PEFT, FVL: BEV, EOTV, FEF10, FEF25, FEF 2575, FEF2575/FVC, FEF40, FEF50, FEF50/FVC, FEF60, FEF75, FEF80, FET, FET2575, FEV.25, FEV.5, FEV.5/FVC, FEV.75, FEV.75/FVC, FEV1, FEV1/FEV6, FEV1/FIV1, FEV1/FVC, FEV3, FEV3/FVC, FEV6, FIF25, FIF50, FIF50/FEF50, FIF75, FIV.25, FIV.5, FIV1, FVC, MEF20, MEF25, MEF40, MEF50, MEF60, MEF75, MEF90, MIF25, MIF50, MIF75, MMEF, PEF, PEFT SVC: ERV, IC, IRV, Rf, VC, VCex, VCin, VCmax, V MVV: MVV, MVV6, MVVtime, VT Flow/Volume Sensor Type: Ultrasonic transit time Flow Range: ± 16 l/s Flow Resolution: 4 ml/s Flow Accuracy (except PEF): ± 2% or 0.020 l/s PEF Accuracy: ± 5% or 0.200 l/s MVV Accuracy: ± 5% or 5 l/min Volume Range: ± 12 l Volume Resolution: 1 ml Volume Accuracy: ± 2% or 0.050 l Resistance: 0.3 cm H20/l/s at 16 l/s
Shipping Information
Please Inquire
Warranty & Returns
2-Year Warranty
