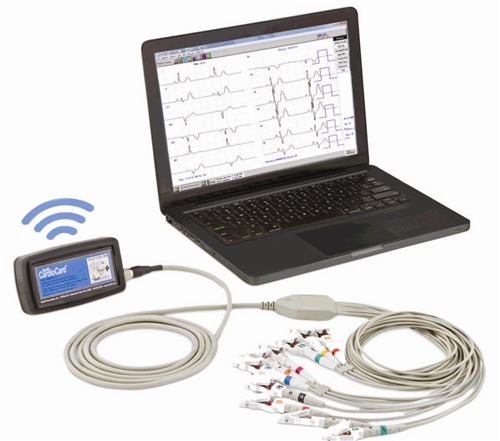

Nasiff CardioResting™ PC Based Bluetooth ECG System
Details
Nasiff Associates, Inc. continues to take the lead in PC-Based Resting ECG systems. Performing fast testing and managing them easily with you at the point-of-care. Works with the following EMR systems: Allscripts MyWay, AthenaNet, Centricity, ChartMaker, eClinical Works, LytecMD, Medent, NextGen, Office Ally, OmniMed, PractiseFusion Features and Benefits Meets newest FAA standards for EKG report submission! (FAA Class I Physicals) Bluetooth, wireless connection for transferring information EMR connectivity with seamless fully integrated systems Legendary quality and outstanding customer support Reliable, user-friendly, compact and durable Unlimited support and training Feature rich at the best price Made in USA
Additional Information
Materials Included CardioResting™ ECG System with Bluetooth® CardioCard™ Software 100 SupraTab Resting Tab Electrodes Resting 10L Banana Cable Adapter White Clips 2 Batteries Bluetooth USB Adapter CardioCard™ Bluetooth® Manual Nasiff Pen
Tech Specs
Technical Specifications Power Supply: DC 3v from 2 AA Batteries Power Consumption: < 200mA ECG Measurement Resolution: 2-4 msec, 1.22uV at 10mm/sec gain Heart Rate Range: 30-300bpm Leads: Standard 12 lead Lead Leakage: < 10uA Acquisition Mode: Simultaneous interpretive 12- lead acquisition Sampling Rate: 12 lead sampling rate 250-1000Hz A/D Rate: 1kHz Time Base: 12.5, 25 and 50 mm/sec Dynamic Range: ± 5 mV Frequency Response: 0.05 to 150 Hz (higher available) Gains: 2.5, 5, 10, 10/5, 20 mm/mV Input Impedance: >1012 ohms System Noise: <40 mV RTI ECG Interpretation Classes: Mls, blocks, enlargements, axis and afib Filters: High performance baseline filter, baseline correction and other filters to minimize motion artifact. CMRR: >120dB Networking: Built-in Measurements: HR with global measurements, complete interval values and ST information. Dimensions: 2.75” W x 1.25” D x 4.87” H (6.985 cm x 3.175 cm x 12.364 cm) Weight: .26 lb (.12 kg) PC Requirements: Tablet/Laptop/Desktop PC, Intel P4, 512MB Ram, 40GB HD, WINDOWS 98 through WINDOWS 7 and MAC’s with Boot Camp, Dual Boot,VMware Fusion or Parallels.
Shipping Information
Please Inquire
Warranty & Returns
2-year limited warranty
