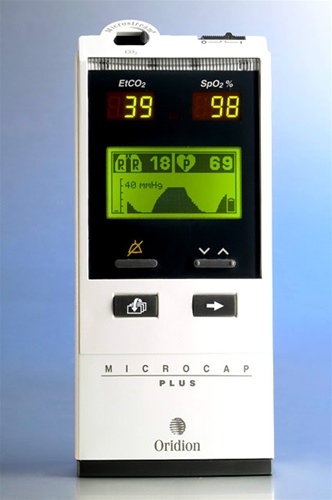

Microcap Plus Handheld Capnograph and Pulse Oximeter
Details
The Microcap Plus has Microstream® capnography and Nellcor pulse oximetry in one convenient portable device providing accurate, continuous monitoring on intubated and non-intubated patients from neonate to adult in hospital and pre-hospital environments, including emergency transport. Features and Benefits Provides capnography. Portable light-weight monitor including both capnography and pulse oximetry. CO2 specific emission source eliminates need to calibrate for presence of other gases. Accurate and reliable in the presence of various gases and a wide range of temperature environments. No need for manual calibration and zeroing, water traps, or flushing monitor between patients. Flow rate of only 50 ml/min, especially suitable for neonatal sampling. Utilizes small sample cell (15 µl) for quick responsiveness and accurate monitoring, even with high respiratory rates. Interfaces to Bernoulli MSM, Oxinet, Philips (via VueLink) and Spacelabs (via Flexport) monitoring systems, nurse call systems. Approved for use in emergency transport.
Tech Specs
Technical Specifications Capnography Display Range: 0-99 mmHg. 0-13.0 Vol % 0-13.2 kPa. CO2 sampling flow rate 50 ml/ min. Warm-up time 30 seconds typical. Accuracy 0-38 mmHg ± 2 mmHg. 39-99 mmHg ± 5% of reading. Respiration rate 0-150 breaths/min. Modes Adult, neonatal. Alarms Adjustable alarm limits for EtCO2, FiCO2, and Respiration Rate. Display Graphic LCD display (128 x 64 dots) with LED backlight (contrast and backlight control); Bright, seven-segment LED for numeric display of EtCO2 and respiration rate; Two color alarm bar. Nurse Call and Bernoulli MSM RS232 interface between monitor and remote systems. Nurse Call System can be easily wired via stereo phone jack. Interface Compatibility: Microcap® only - one parameter (v3.15 and higher): Output to Philips CMS 2001, V24, V26 via VueLink A01 and A05. Output to Spacelabs Ultraview®, PCMS™ , PCIS™, UCW®, and PC Scout® via Flexport 0152 and 0555. Pulse Oximetry Display Range: SpO2 Saturation 0%-100% Pulse Rate 20-250 beats/minutes. Accuracy: Adults 70%-100% ± 2 digits, 0-69% unspecified. Neonate 70%-100% ± 2 digits, 0-69% unspecified.
Shipping Information
Please Inquire
Warranty & Returns
2-year warranty.
