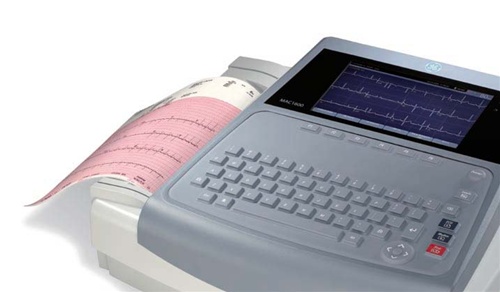

MAC1600 EKG Machine
Details
The MAC 1600’s resting ECG function can be easily configured to meet the needs of nearly every environment. With the availability of GE’s Marquette 12SL ECG analysis program, Hook-up Advisor for assessment of ECG signal quality, and an easy connection to your ECG cardiology management system, the MAC 1600 couldn’t be smarter. Features and Benefits Diagnostic confidence – Recognized across the globe as one of the most validated programs in the industry, the optional GE Marquette 12SL ECG analysis program provides true, computer-interpreted analysis of adult and pediatric populations. Signal quality – The Marquette 12SL Hookup Advisor™ ensures ECG signal quality from the start. This exclusive GE algorithm goes beyond simple electrical checks to advise clinicians of poor waveform quality during the recording of ECGs. Easy configuration – The MAC 1600 automatically captures 10-second ECGs with one-touch operation. Additionally, you can select the rhythm ECG mode to continuously review all 12 leads, or the arrhythmia mode for an extended review of arrhythmias or events. Comprehensive – The MAC 1600 offers more than just acquisition. Its online editing and re-analysis of ECG waveform capabilities enhance the accuracy of patients’ records.
Additional Information
Materials Included Multi-link patient cable with replaceable leadwires, available with both AHA and IEC labeling Value cable with dedicated leadwires Disposable electrodes Re-usable electrodes Paper options and sizes KISS System – 12-lead suction and application system (reusable electrodes), integrated pump (option)
Tech Specs
Technical Specifications Height / width / depth: Approximately 400 mm x 350 mm x 150 mm Weight: Approximately 6.0 kg with battery installed Display: Type: 7'' TFT LCD module, widescreen Display resolution: 800 x 480 pixels WVGA resolution – same as 800 x 480 Color VGA port for external CRT monitor Writer Resolution: Vertically 8 dots/mm, horizontally 40 dots/mm @25 mm/sec Paper type: thermal A4 & US letter, Z-fold Writer speed: 5, 12.5, 25, 50 mm/sec Processing 12 lead simultaneous analysis 500 or 1000 samples/sec Power supply AC operation Voltage: 100 to 240 VAC, +10, -15% Current: 0.5A at 115 VAC Current: 0.3A at 240 VAC Frequency: 50 to 60 Hz +/- 10% Battery operation Type: User replaceable, 16.4V@ 2300 AH, Lithium Ion Capacity: 50 single page reports, (typical) 3 hours continuous display (without printing) Charge time: Approximately 2.5 hours from total discharge Operating temperature: 50° to 104° F (10° to 40° C)
Shipping Information
Please Inquire
Warranty & Returns
3-year warranty for ECG device 90-day warranty for patient cable and battery
