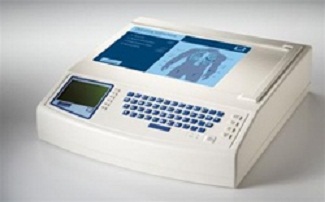

IQclassic ECG Machine (Interpretive)
Details
The IQClassic is the latest in Midmark's family of 12-lead resting electrocardiographs. With an intuitive user interface that is quick to learn and easy to use, the IQclassic™ ECG is a great, no-hassle solution that also provides superior data quality. Features and Benefits Intuitive user interface: Quick to learn, easy to use. Preview and monitor: Real-time preview of 12-lead ECG and post-acquisition review of acquired ECG. Acquire and store: Internal storage for up to 60 digital ECG records. Interpretation algorithm: VERITAS™ resting ECG interpretation algorithm with with age (adult and pediatric) and gender criteria. Waveform display: Backlit 1/4 LGA LCD; 3-lead groups, 8 or 12-lead presentation. Data entry: Full keyboard with “one-touch” buttons for ECG acquisition, rhythm printing and ECG transmission. Reports: Full-size (8.5” x 11” or A4) Z-fold paper output for multiple standard or Cabrera print options including 3+1, 3+3, 6-channel, and 12-channel outputs (tray holds 250 sheets) Connectivity options: Communication via serial port, internal modem, LAN, or wireless LAN with security for WEP, WPA-PSK, and CISCO® LEAP. FAA capable: FAA/modem optional.
Additional Information
Materials Included Midmark IQclassic ECG 10-Lead Patient Cable 10-Pack Clear ECG Clips 100-Pack Disposable EZ-Trode ECG Electrodes Operation Manual CD Power Cord Quick Reference Guide
Tech Specs
Technical Specifications Dimensions: 15.5” x 17” x 4” (39.4 cm x 43.2 cm x 10.2 cm) Power: Universal AC power supply (100-240 VAC at 50/60 Hz) 50 VA; internally rechargeable battery. Input Impedance: Meets or exceeds the requirements of ANSI/AAMI EC11 Standard Leads: I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6 Frequency Response: 0.05 to 300 Hz Filters: High-performance baseline filter; AC interference 50/60 Hz; low-pass filters 40Hz, 150 Hz, or 300 Hz A/D conversion: 20 bits (1.17 microvolt LSB) Digital Sampling Rate: 10,000 samples/sec/channel used for pacemaker spike detection. Analysis Rate: 1,000 samples/sec/channel used for recording and analysis. Thermal Printer: Computer-controlled dot array; 8 dots/mm Thermal Printer Speeds: 5, 10, 25, or 50mm/s Gain settings: 5, 10, or 20 mm/mV Report Print Formats: Standard or Cabrera: 3+1, 3+3 channel, 6-channel, 12-channel. Rhythm Print Formats: 3-channel, 6-channel or 12-channel with configurable lead groups.
Shipping Information
Please Inquire
Warranty & Returns
1-year warranty on main unit. 90-day warranty on accessories.
