HeartSine Samaritan PAD 350P AED
Details

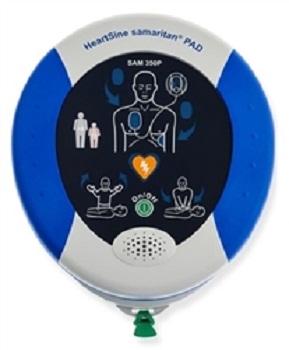

Sudden Cardiac Arrest (SCA) is a leading cause of death globally. Response time is critical for survival. The semi-automatic HeartSine samaritan PAD 350P offer industry-leading value and environmental protection, all in an easy-to-operate system in the smallest and lightest package available. Features and Benefits Compact in Size, Long on Ability Portable and lightweight: The samaritan PAD 350P is lighter (2.4 lbs/1.1 kg) and smaller than other defibrillators. Durable: The samaritan PAD 350P resists shock and vibration and carries an IP56 Rating, the industry’s highest rating against dust and moisture ingress. Advanced Technology: The samaritan PAD 350P utilizes proprietary electrode technology, advanced and stable firmware, and proprietary SCOPE™* Biphasic technology (an escalating and low-energy waveform that automatically adjusts for patient impedance differences) to assess rhythm and recommend defibrillation if necessary. Easy-to-Follow Visual and Verbal Guides User-Friendly: The samaritan PAD 350P features easy-tounderstand visual and voice prompts that guide a user through the process including CPR coaching. Two-Button Operation: Only two buttons, ON/OFF and SHOCK, are required for straightforward operation Always Ready: A System Status Ready Indicator flashes to show that the complete system is operational and ready for use. The device automatically runs self-check each week. Real Economy for the Real World Two Parts, One Expiration Date: Pad-Pak™ cartridge combines battery and electrode pads, with one expiration date to monitor. Low Cost of Ownership: With a shelf life of four years from date of manufacture, the Pad-Pak offers significant savings over other defibrillators that require separate battery and pad units. Available in English or Spanish language versions.
Additional Information
Materials Included PAD 350 AED Unit 1 Adult PAD-PAK 1 Battery Pack 1 Carry Case User Manual
Tech Specs
Technical Specifications Physical Characteristics Dimensions: 8" x 7.25" x 1.9" Weight: 2.4 lbs Defibrillator Waveform: Self-Compensating Output Pulse Envelope (SCOPETM) Biphasic waveform. Optimized biphasic escalating waveform compensates energy, slope and envelope for patient impedance Patient Analysis System Evaluates patient’s ECG, signal quality, electrode contact integrity and patient impedance to determine if defibrillation is required. Sensitivity/Specifity: Meets ISO 60601-2-4 Environmental: Operating/Standby Temperature: 0°C to 50°C (+32°F to +122°F) Temporary Transportation Temperature: –10°C to 50°C (14°F to 122°F) for up to two days. Unit must be returned to standby/operating temperature for 24 hours before use. Relative Humidity: 5% to 95% (non-condensing) Water Resistance: IEC 60529/EN 60529 IP56 Altitude: 0 – 4,575 meters (to 15,000 feet) Shock: MIL STD 810F Method 516.5, Procedure I (40 G’s) Vibration: MIL STD 810F Method 514.5+ Category 4 Truck Transportation – US Highways Category 7 Aircraft – Jet 737 & General Aviation (Exposure) EMC: EN 60601-1-2 Radiated Emissions: EN55011 Electrostatic Discharge <RF Immunity: EN61000-4-3 80MHZ-2.5GHZ (10 V/m) Magnetic Field Immunity: EN61000-4-8 (3 A/m) Aircraft: RTCA/DO-160F, Section 21 (Category M) Falling Height: 1 meter (3.3 feet) Energy Selection Adult: Shock 1: 150J Shock 2: 150J Shock 3: 200J Pediatric Shock 1: 50J Shock 2: 50J Shock 3: 50J Charging Time New Battery: Typically 150J in < 8 seconds, 200J in < 12 seconds After 6 Discharges: Typically 150J in < 8 seconds, 200J in < 12 seconds Event Documentation Type: Internal Memory Memory Capacity: 90 minutes of ECG (full disclosure) and event/ incident recording Playback Capabilities: Custom USB cable directly connected to PC and SaverTM EVO Windows-based data review software Materials Used Housing: ABS, Santoprene Electrodes: Hydrogel, Silver, Aluminum, Polyester Pad-Pak — Electrode and Battery Cartridge Shelf Life: 4 years from manufacture date Weight: 0.2 kg (0.44 lbs) Size: 10 cm x 13.3 cm x 2.4 cm (3.93 in x 5.24 in x .94 in) Battery Type: Lithium Manganese Dioxide (LiMnO2) Capacity: > 60 shocks at 200J Electrodes: HeartSine samaritan® disposable defibrillation pads are supplied as standard with each device Placement: Anterior-lateral (Adult); Anterior-posterior (Pediatric) Active Gel Area: 100 cm (15.5 in) Cable Length: 1 meter (3.3 feet)
Shipping Information
Please Inquire
Warranty & Returns
8-Year Warranty
