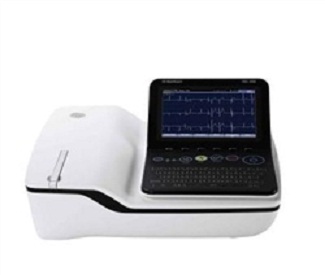

The MAC 2000 Resting ECG System with the Marquette* 12SL* analysis program can help to avoid variations in care delivery by standardizing ECG information from the physician office through the hospital. The system provides proven diagnostic support enabling clinicians to make fast, accurate diagnoses. Its flexible connectivity solutions offer clinicians the data they need to help improve patient outcomes and streamline workflow throughout the continuum of cardiac care. Features and Benefits Workflow enhancements with connectivity to EMRs, CS Diagnostic System and the MUSE* ECG Management systems, or send reports to a shared directory on a PC Connectivity with LAN, Wi-Fi, serial port, modem, or SD card PDF and XML export capabilities Marquette* 12SL* ECG analysis program for clinical decision support Supports paperless workflow with options for bidirectional communication, including an option for orders Easy-to-read 7" color display is configurable to meet your needs On-screen preview of 12-lead waveforms and ECG results helps streamline review and diagnosis Automatic capture of 10-second ECGs with one-touch operation Hookup Advisor* signal quality Analysis Program Internal storage for up to 200 ECGs Gender-specific interpretation provides improved sensitivity to Acute Myocardial Infarction in women
Materials Included Mac 2000 ECG Unit (1) 10 Lead Patient Cable (10) Alligator Clips (1) Pack of paper (150 sheets) (1) Pack of electrodes (100 electrodes) (1) Power Cord (1) SD Card User Manual
Technical Specifications Dimensions: 13" x 15.5" x 8" Weight: 11 lbs Device Type Portable, Integrated Unit Printer Integrated Thermal Dot Array Printer Speed Thermal Dot Array Traces: Up to 12 ECG traces sampled at 500 or 1000 Hz Paper Type: Z-fold thermal with pre-printed grid and perforation Paper Size: 8.5" x 11", 8.25" x 11.6", 8.43" x 11" Paper Capacity: 150 Sheets Battery Type: Replaceable and rechargeable, Lithium Ion Battery Capacity: 100 single page resting ECG recording or 3 hours continuous monitoring Keypad: Soft function keys, full alphanumeric keyboard, writer controls, trimpad cursor Traces: 3, 6, 12 Resolution: WVGA - 800 x 480 Pixels CRT Interface: No CRT Interface Connector USB Port: 2 USB 2.0 ports available Mechanical Design: Housing with built-in graphics display SW on mainboard Display Type: 7" color TFT graphics display Battery Charge Time: 3.5 hours from total discharge
Please Inquire
3-Year Warranty
