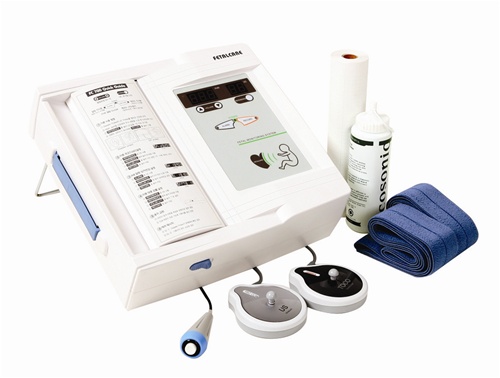

Combining high functionality and user friendliness, the FC 700 fetal monitor allows for comprehensive assessment of the well-being of a single fetus. The advanced digital signal processing capabilities and ultrasound technology optimizes the acquisition of the fetal heart rate during even the most adverse situations. AF size report improves readability of the FHR and UC trend. The FC 700 is the ideal fetal monitor for all clinical settings from physician's offices to labor and delivery suites. Features and Benefits Accurate FHR detection. High sensitivity. Automatic fetal movement detection. A4 size wide chart paper. Uses inexpensive fax paper. Intuitive user interface. Easy to upgrade. PC interface through RS-2F32C. Digital LED display shows current fetal heart rate and uterine contraction measurements with excellent visibility. Carrying handle provides great mobility enabling you to take fetal monitoring where you need it. Alarm indication makes you aware of changes in fetal condition helping you take immediate action. Provides accurate fetal heart rate and uterine contraction measurement information on fetal well-being during labor and in the months before.
Materials Included FC700 main unit US probe TOCO probe Event marker jack Ultrasound gel Probe belt (x2) Paper (x2) Power adapter & hospital grade power cord Operational manual
Technical Specifications General Specifications Dimensions: 296 (W) x 305.5 (H) x 92.5 (D)mm Approx. 2.9 kg Display: 7-segments LED 2 channels (HR, UC) Recorder: Method: Thermal print Print Speed: 1,2,3 cm/min. Paper feeding function Power Specifications Power Adapter: Input: 100-240 VAC, 50~60Hz, 1.2A Output: 18 VDC, 2.5A External Link: RS-232C: Program Download, Central System Connection (option) Environmental Specifications Temperature Range: Operating Temperature: 10-40 Degrees C Storage Temperature: -10-60 Degrees C Performance Specifications Fetal Heart Rate: Input Signal: Ultrasound pulsed doppler Ultrasound Frequency: 1.0 Mhz FHR Detection Method: Auto Correlation FHR Range: 50 ~ 240 bpm FHR Accuracy: 120 ~ 160 bpm: +1 bpm. Uterine Contraction: Input Source: External transducer with strain gauge Reference(zero) control: One touch switch Measurement Range: 0~99 units Fetal Movement Measurement: Detection Source: Ultrasound pulsed doppler
