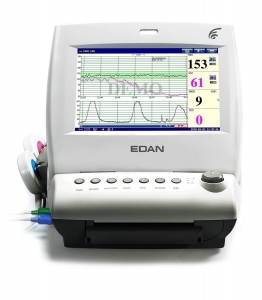

F6 Express Fetal Monitor
Details
The Edan F6 Express Fetal Monitor contains the power necessary for multi-bed units while maintaining a simplistic design suitable for private practice. This high-end hospital grade monitor offers one of the most advanced integrated monitoring systems for the delivery room. Features and Benefits Basic parameters: FHR, TOCO, Event Mark, AFM Maternal Parameters: ECG, HR/PR, NIBP, SpO2, TEMP 24 hours waveforms playback 150/152mm wide paper printing Support American/International standard 1, 2, 3 cm/min real-time printing speeds Quick printing for stored waveform Lithium battery for 4 hours continuous working 10.2 - inch high resolution color folding up LCD screen Probe rack and wall mounting rack Handle for easy transportation Multi-crystal pulse wave Doppler waterproof transducer for FHR detection Signals Overlap Verification
Tech Specs
Technical Specification Physical Characteristics Dimensions: 347mm x 330mm x 126mm Weight: 6 kg. approx. Display 10.2 inches color TFT-LCD Resolution: 800 x 480 Printing Recorder: 1,2,3/cm./min. real printing speed. Fast print speed (stored traces) up to 25mm/sec. Recording Paper: 150/152mm, Z-Fold, thermosensitive, American/International Standard Ultrasound Technique: Ultrasound Pulse Doppler with auto-correlation Pulse repetition rate: 2 KHz Ultrasound frequency: 1.OMHz ± 1O% FHR range: 50bpm - 240bpm Resolution: 1bpm Accuracy: ±2 bprn DECG Technique: Peak - Peak detection technique FHR range: 30bpm - 240bpm Resolution: 1 bpm Accuracy: ±1 bpm Input Impedance: > 10M (Diff erential) Input Impedance: > 20M (Common Mode) TOCO TOCO range: 0-100 Relative (%) Resolution: 1 count Zero mode: AutolManual Non-linear error: 10% IUP Pressure range: 0 - 100 mmHg Resolution: 1% Zero mode: Automatic / Manual Non-linear error: ±1mmHg Auto Fetal Movement (AFM) Technique: Pulsed Doppler ultrasound Range: 0-100 (%) Resolution: 1% Marking Manual fetal movement mark Battery 14.8 V rechargeable Lithium-ion battery Continual working time: 2-4 hours Signal Interface DB9 network interface, RJ45 interface
Shipping Information
Please Inquire
Warranty & Returns
2-Year Warranty
