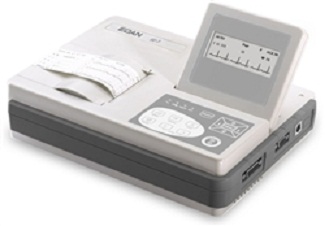

Edan Smart SE-3 3-Channel ECG Machine
Details
Smart ECG SE-3 series are portable and high quality multi-channel ECG, which offer not only normal thermal printing but also external printing solution. With an external printer, this unit is able to print out 12 leads ECG waveforms on A4 plain paper simultaneously. Features and Benefits Compact and lightweight design Foldable LCD screen Simultaneous 12 leads acquisition Built-in rechargeable Li-ion battery Complete digital filters, resisting baseline drift, AC and EMG interference Automatic measurements and interpretation tested by authoritative CSE/MIT/AHA database Internal thermal printer and external printer via USB port PC-based data management software (Smart ECG Viewer)
Additional Information
Materials Included SE-3 3-Channel ECG Machine (1) ECG Recording Paper (1) 12 Lead Patient Cable (100) Electrodes (10) Universal Clips (1) Power Cord (1) Litihium Ion Battery User Manual
Tech Specs
Technical Specifications Dimensions: 288mm x 210mm x 70mm Input Circuit: Defibrillator protection built-in. Lead: Standard 12 leads Acquisition Mode: 12 leads simultaneously A/D Converter: 12 bits / 24 bits Measurement Range: +- 5mVpp Time Constant: >3.2s Frequency Response: 0.05Hz ~ 150Hz (-3dB) Calibration Voltage: 1mV +- 3% Sensitivity: 2.5, 5, 10, 20 (mm/mV) Record Paper: 80mm x 20m Display: 320 x 240 pixels LCD (Wide Screen) 192 x 64 pixels LCD (Narrow Screen)
Shipping Information
Please Inquire
Warranty & Returns
3-year warranty
