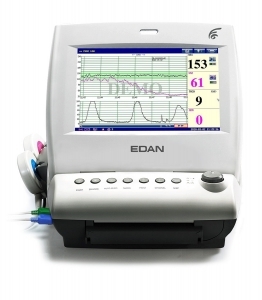

Edan F6 Dual Fetal Monitor (Twins FHR)
Details
The Edan F6 Fetal Monitor contains the power necessary for multi-bed units while maintaining a simplistic design suitable for private practice. This high-end hospital grade monitor offers one of the most advanced integrated monitoring systems for the delivery room. Features and Benefits Basic parameters: FHR, TOCO, Event Mark, AFM 24 hours waveforms playback 150/152mm wide paper printing Support American/International standard 1, 2, 3 cm/min real-time printing speeds Quick printing for stored waveform Lithium battery for 4 hours continuous working 10.2 - inch high resolution color folding up LCD screen Probe rack and wall mounting rack Handle for easy transportation Multi-crystal pulse wave Doppler waterproof transducer for FHR detection Signals Overlap Verification
Additional Information
Materials Included F6 Fetal Monitor w/ Dual FHR (Twins) Unit (2) FHR Probe (1) TOCO Probe (F6 without DECG and IUP Function) (1) TOCO Probe (F6 with DECG and IUP Function) (1) Event Market (3) Belts (1) Ultrasound Gel (3) Pack of Recording Paper (1) Insight Software (1) Power Cord (1) User Manual
Tech Specs
Technical Specification Physical Characteristics Dimensions: 347mm x 330mm x 126mm Weight: 6 kg. approx. Display 10.2 inches color TFT-LCD Resolution: 800 x 480 Printing Recorder: 1,2,3/cm./min. real printing speed. Fast print speed (stored traces) up to 25mm/sec. Recording Paper: 150/152mm, Z-Fold, thermosensitive, American/International Standard Ultrasound Technique: Ultrasound Pulse Doppler with auto-correlation Pulse repetition rate: 2 KHz Ultrasound frequency: 1.OMHz ± 1O% FHR range: 50bpm - 240bpm Resolution: 1bpm Accuracy: ±2 bprn DECG Technique: Peak - Peak detection technique FHR range: 30bpm - 240bpm Resolution: 1 bpm Accuracy: ±1 bpm Input Impedance: > 10M (Diff erential) Input Impedance: > 20M (Common Mode) TOCO TOCO range: 0-100 Relative (%) Resolution: 1 count Zero mode: AutolManual Non-linear error: 10% IUp Pressure range: 0 - 100 mmHg Resolution: 1% Zero mode: Automatic / Manual Non-linear error: ±1mmHg Auto Fetal Movement (AFM) Technique: Pulsed Doppler ultrasound Range: 0-100 (%) Resolution: 1% Marking Manual fetal movement mark Battery 14.8 V rechargeable Lithium-ion battery Continual working time: 2-4 hours Signal Interface DB9 network interface, RJ45 interface
Shipping Information
Please Inquire
