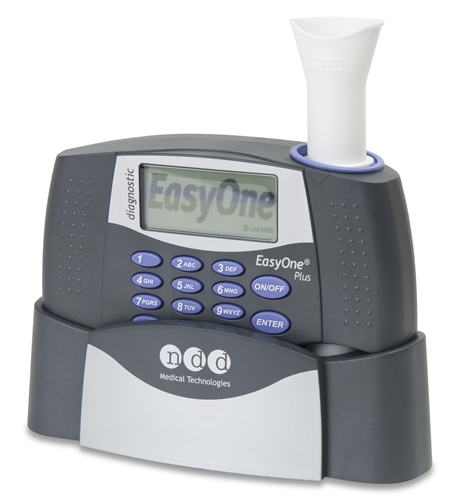

The ndd EasyOne Plus Diagnostic Spirometry System II contains all the features of the System 1 plus a 4-year extended warranty and a case of 50 spirettes. ndd Medical Technologies’ EasyOne Plus Diagnostic spirometer offers true portability for testing anytime, anywhere. With ndd’s TrueFlow technology, the EasyOne is not influenced by heat, humidity, barometric pressure, or altitude. Some of the many features of the EasyOne Plus include our USB cradle for direct connection to printer or PC, flexible EMR capabilities, vast memory (~700 tests) and selectable predicted values and interpretation. Features and Benefits FVC, FVL, SVC, MVV, OSHA Cotton Dust, Disability, Pre/post test types. 3 curves. Graphic curve display. Customizable configuration. For office spirometry Stand alone instrument. Direct print capability. No maintenance. Long term stability without calibration. Spirette is the new hygienic consumable for economic, safe, and secure procedures with lab precision. For studies Works without computer, but can be linked easily. No calibration required for long term stability. No site to site differences due to operator manipulations. Point of care testing and bed-side monitoring Bring your "lab" to the patients without compromising accuracy. Maintenance free. No warm up time, no pre-testing preparation.
Materials Included Diagnostic Spirometer EasyWare software Case of 50 spirettes Printer 1 Paper Roll In-service CD User manual
Technical Specifications Test Modes: FVC (expiratory), F/V Loop (inspiratory and expiratory), slow VC, MVV, Pre-Post measurement. Unit can be configured to meet NIOSH/OSHA and Disability reporting requirements Parameters: FEV1, FVC, FEV1/FVC, FEV6, FEV1/FEV6, FEF25-75, FEF25, FEF50, FEF75, PEF, FET, FIVC, PIF, IVC, IRV, ERV, FEV1/VC, MVV, pre-post % variation, QC rating Quality Control: Requires 3 acceptable, reproducible maneuvers. (meets ATS standards) Automatic Quality Control: Quality control can also be overridden manually Trial storage and display: Can store and display the best, or up to 8 trials, including curves Report Configuration: Report can be customized for curve type and size Predicted Values: Can choose from several sets of adult and pediatric normals Curve Display: Displays a full flow-volume curve on the display after each trial
