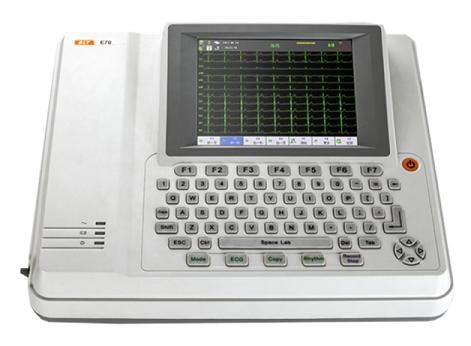

E70 Digital Portable EKG Machine

E70 Digital Portable EKG Machine

Brand:   E70
Condition:   New
8 inch color LCD Touch Screen with intuitionistic display.
Have a question? Feel free to Ask a question
Please Sign In to Buy     |    $1,635
If you just logged in, please refresh the page


The ECG E70 is a simple, intuitive operation with touch-enabled device. Features and Benefits 8 inch color LCD Touch Screen with intuitionistic display Displays 12 waveforms synchronously Ease to use intuitive QWERTY keyboard design with multi-function shortcut keys Built in A4 thermal printer Fixed memory of 100 groups of ECG data Support saving to Internal data, SD card and USB flash disk Support transferring data, reviewing data and reanalyzing data High-capacity data saving into built-in Innovative digital filters for better performance Fast-speed baseline correction algorithm 24-bit high-resolution & 1000Hz high- frequency data sampling 24-bit high-accuracy data saving ensures accuracy of follow-up data analysis

Additional Information

Materials Included E70 ECG Unit 10 Lead ECG Patient Cable (100) Electrodes (10) Alligator Clips (1) 11.1V/4000mAH Lithium Battery User Manual

Tech Specs

Technical Specifications Dimensions: 12" x 8" x 3" Unit Weight: 13 lbs Display: 8" TFT LCD Resolution: 800 x 600 pixels Power Supply: Input Voltage: AC: 100V~240V, 50Hz/60Hz Input Power: 60VA Environment Specifications: Operation Environment Temperature: +5°C ~ +40°C Relative Humidity: 25% ~ 93% Atmospheric Pressure: 700hPa ~ 1060hPa Storage: Internal Memory: 100 Groups ECG Data External Memory: SD Card or USB Storage Mode: Background Storage Automatically Storage Format: XML Input/Output: Keyboard: Standard PC104 (Position) Touchscreen: Option Network: 1 x RJ-45 Socket USB Connector: 2 x USB Host (Support Hot-Swap) SD Card: 1 x Standard SD Card Socket Record: Recording Way: Thermal Dot Array Horizontal Resolution: 40 Dots/mm Vertical Resolution: 8 Dots/mm Recording Speed: 5 mm/s, 6.25 mm/s, 10 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s Error: ±3% Recording Linearity: ≤ 0.5 mm/30M Paper Length: 295 mm / 280 mm Paper Width: 210 mm / 216 mm Paper Type: Z-Fold Accuracy: ± 5% (X Axis) ± 5% (Y Axis) Record Type: More than 10 kind of printing methods Measure and Diagnosis of ECG: HR Range: 30 bpm - 350 bpm HR Precision: ±1bpm (10s average) Coefficient Error: ≤ 5%, 0.333 Measure Inform of ECG waveform: P Time Limit PR Interphase QRS Time Limit QT Interphase RR Interphase Rv5 Swing Sv1 Swing Rv6 Swing Sv2 Swing Rv5+Swing P Axis QRS Axix Diagnosis Analyze: ≥ 140 Kinds Display of ECG Collection: Signal Input: 12-Lead, Defibrillator-proof, Pacemaker Pulse Rejection Degree of Protection Against Electric Shock: 4000V, Type CF Applied Part Polarization Voltage Resistance: ≥ ± 500mV Response to Frequency: 0.05Hz-150Hz (-3dB) Baseline Filter: 0.05 Hz, 0.15Hz, 0.25Hz, 0.5Hz ECG Filter: 25Hz, 35Hz, 45Hz, Low Pass Filter: 75Hz, 100Hz, 150Hz Gain Selection: 2.5, 5, 10, 20, 10/5, ACG (mm/mV) Gain Accuracy: ±5% Time Base Selection: 5 mm/s, 6.25 mm/s, 10 mm/s, 12,5 mm/s, 25 mm/s, 50 mm/s Input Impedance: ≥ 50 MΩ Current of Input Loop: ≤ 50 n A Patient Leak Current: ≤ 10µA CMRR: ≥ 109dB (with AC Filter) Time of response to wave displaying: ≤ 5s Time of baseline recovered after switching leads: ≤ 1s Defibrillator-Proof: 5000v 360J Recovering Time for Defibrillator-Proof: ≤ 5s Recovering Time for Defribrillator Electrode Polarization: ≤ 10s Energy Reduced: ≤ 10% Voltage Transfer: ≤1 V

Shipping Information

Please Inquire

Warranty & Returns

18-Month Warranty
