DM Dual Mag Stereoscope on Pneu Flex Arm
Details

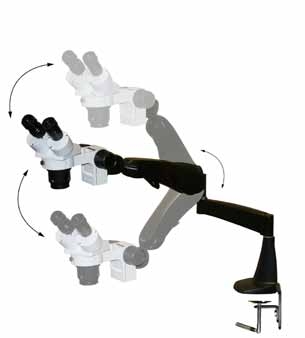

The DM Dual Mag stereoscope together with the Pneu (new) Flex Arm is a symbol of functionality and ingenuity, allowing vertical, horizontal, and complete 360° adjustments. This versatile system gives you control of your space and the knowledge that your scope is secure. The DM’s large optics produce increased width, working distance and depth of focus. The included 0.5 supplementary lens doubles your field of view, expands your magnification options, and extends your working distance for hands-under work-space. The DM is the best quality dual-magnification scope in the dental, electronic, and industrial markets. Features and Benefits Aluminum alloy construction Acid and reagent resistant finish
Additional Information
Materials Included (1) DM Head (2) Paired Objectives (Available in 10x/20x , 10x/30x or 20x/40x) (1) 0.5x Reducing Lens (1) Pneumatic Flex Arms (1) DM Base (2) Eye Guards (1) C-Clamp User Manual
Tech Specs
Technical Specifications Head Binocular, dual mag 10/20, 10/30 or 20/40 Inclined 45°, rotates 360° 10X/20 locked WF eyepieces 30mm eye tube diameter Interpupillary distance adjustment 55-75mm Adjustment Controls Rack & pinion focusing Tension adjustment on pneumatic horizontal arm Adjustable-width c-clamp for mounting to a bench Illumination Ambient bench light may be sufficient Optional ring lights available Fluorescent Ring Light - 10w Variable LED Ring Light - 48 bulb Variable LED Ring Light - 60 bulb Weight and Dimensions DM Head: 2.6lbs (2.54kg) Pneumatic Arm: 13.89lbs (6.3kg) Maximum Radius: 14.96’’ (380mm) Minimum Radius: 10.83’’ (275mm)
Shipping Information
Please Inquire
Warranty & Returns
1-Year warranty
