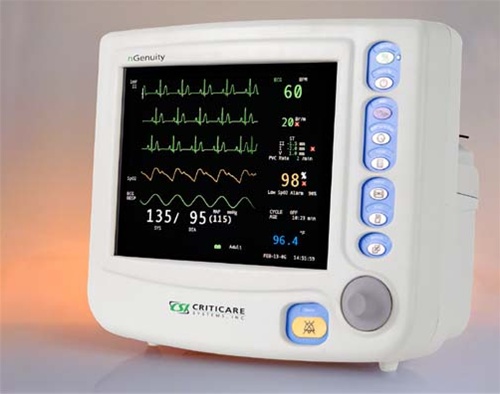

The nGenuity™ 8100E patient monitor is the perfect choice for busy departments demanding accurate, reliable performance. Compact and lightweight, the nGenuity 8100E patient monitor can monitor patients in virtually every department - at bedside or in transit. The innovative user interface features simplified menus and dedicated function keys for timely set-ups. The big, bright display with large numerics can easily be seen, even from across the room. Features and Benefits Standard: ECG, ComfortCuff™ NIBP, DOX™ SpO2, HR, Temperature, Respiration, and Nurse Call interface connection. Easy-to-read 10.4" active TFT color display - view up to 6 waveforms simultaneously. Easy to learn, easy to use menus, dedicated function keys, and simplified controls. Lightweight design and versatile mounting options - adapts readily to department and transport requirements. Compatible with popular Electronic Medical Records (EMR) systems for both large and small offices. Mounts quickly to walls and rollstands.
Materials Included 8100E Patient Monitor (1) SpO2 Adult Sensor (1) Child/Small Adult BP Cuff (1) Adult BP Cuff (1) Large Arm Adult BP Cuff (1) NIBP Hose (1) Rechargeable Battery (1) ECG Cable Assembly. (3) ECG Electrodes (1) Power Cord User Manual
Technical Specifications ECG Connectors: 3- or 5-lead Leads: User-selectable; I, II, III, aVR, aVL, aVF, V (5-lead); I, II, or III (3-lead) Gain Selection: x1/2, x1, x2, and x4 Electrosurgery Protection: Yes Defibrillator Protection: Yes Pacer Detection/Rejection: Yes Non-Invasive Blood Pressure Technique: Oscillometric measure upon inflation Automatic Measurement Cycles: 2, 3, 5, 10, 15, 30 min; 1, 2, 4 hr Measurement Range: Adult: 30 to 300mmHg; Neonate: 0 to 150 mmHg Resolution: 1mmHg Transducer Accuracy: ±2mmHg or ±2%, which ever is greater STAT mode: 5 min of consecutive readings Pulse Oximetry Range: 1% to 99% Resolution: 1% Accuracy: 70% to 99% range: ±2% 50% to 69% range: ±3% <50%: unspecified Method: Dual wavelength LED Heart (Pulse) Rate Source: ECG (primary); Pleth; NIBP Range: 20 to 300 bpm (30-240 bpm, NIBP) Accuracy: ±1bpm or ±1% (ECG); ±2 bpm or ±2% (NIBP) Temperature Channels: 1 Range, Accuracy: 68° to 113° F (20° to 45° C): ±0.1° C Probe: YSI-400 and YSI-700 series Respiration Rate: 6 to 150 breaths/min Resolution: 1 breath/min Accuracy: ±1% or ±1 breath/min, whichever is greater Source: ECG-TTI Alarms Indication: Audible; visual Silence: Yes; 2 min or permanent Trend Memory Memory: 24 hr at 30 sec intervals Display: Tabular, Graphical Display Screen: 10.4" active color TFT Resolution: 640 x 480 pixels Waveforms: 6, maximum Languages: English, French, German, Italian, Portuguese, Spanish, Russian, Chinese Controls Keys: 9; membrane-activated Rotary Knob: Push and rotate; 24 steps/turn System Outputs Com Ports: RS 232-compatible; DB9 (Com 1) Nurse Call: Contact switch; 3.5mm stereo phone jack, standard 14mm length Defib/Sync: BNC connector Video Port: High density D-sub 15-pin Mechanical Weight: 14 lb; 6.4kg Size: Base unit: 11" (H) x 13" (W) x 10.3" (D); 28cm (H) x 33cm (W) x 26.2cm (D) Power Requirements Voltage: 100, 120, 220, 240 VAC; 50/60 Hz Consumption: 35 W, typical Batteries: 1; sealed lead acid; life: 3 hr, typical; recharge time: 4.5 hr Environmental Operating Temperature: 59° to 95° F; 15° to 35° C Storage Temperature: 23° to 122° F; -5° to 50° C Operating Humidity: 15% to 90%, non condensing Classification Medical Device: Class II Equipment (IIb EU) Electrical Protection: Class I Equipment Degree of Protection: Type CF, Defib-proof Protection Against Ingress: IPX1 Office Management Software Compatibility – CSI products are compatible with the following OMS products below. Kodak WINOMS CS by Carestream Dental LLC TiME for OMS by Decision Base, Inc. U.S. HealthRecord powered by TeamLINKS, Inc. Oral Surgery-Exec® by DSN Practice Management Software OMSVision® by HenrySchein Practice Software Windent® by Carestream Dental LLC MD-REPORTS ProVation® Medical gMed Endosoft®
