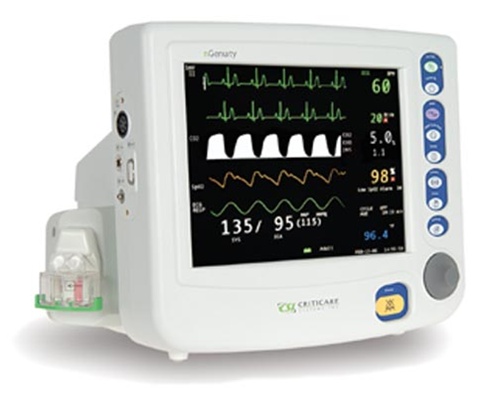

Criticare nGenuity 8100EP1 Patient Monitor w/ CO2 & Printer
Details
The nGenuity™ patient monitor is the perfect choice for busy practices demanding accurate, reliable performance. Compact and lightweight, the nGenuity™ patient monitor can monitor adults, pediatrics and neon. The nGenuity 8100EP1 patient monitor displays true end-tidal CO2 with numerical ETCO2 and INCO2 values as well as capnographic waveform. A smart respiration feature automatically defaults to the best available source, either CO2 or ECG TTI. Criticare's advanced design capnometer module is accurate with breath rates up to 120 breaths per minute. Flow rate is set at 200 mL per minute for exceptionally fast response. A rise time responsiveness within 170 milliseconds provides outstanding waveform display. The capnometer modules uses sidestream sampling and Criticare's patented WaterChek™ water traps to remove moisture without distortion to the CO2 waveform. The water traps have a large 22 mL reservoir and full occlusion clearing capability unlike many other CO2 monitoring systems. Features and Benefits Monitors End-tidal CO2 and inspired CO2 accurately at high respiration rates. Gas Monitoring with full occlusion clearing and high capacity water trap. Mini-Trends can display condensed tabular vital signs data to show recent monitoring activity. Compatible with popular Electronic Medical Records (EMR) systems for both large facilites and small offices. Easy-to-read 10.4" active TFT color display. Easy to learn, easy to use -- simplified menus and dedicated function keys. Monitor can mount quickly and easy to a wall or rolling stand Simple-to-use, lightweight, and portable design. Monitor comes with an integrated printer
Additional Information
Materials Included 8100EP1 Patient Monitor Unit (1) SpO2 Adult Sensor (1) Adult BP Cuff Quick Connect. (1) Large Arm Adult BP Cuff. (1) NIBP Hose - 10ft. Straight. (1) ECG Cable Assembly. (3) ECG Electrodes (1) Printer (1) Power Cord (1) CO2 Sidestream (1) CO2 Sensor (5) Water Traps (5) Sample Line Operator's Manual
Tech Specs
Technical Specifications Dimensions: Width: 13" Height: 11" Depth: 10.3" Weight: 14 lbs ECG Number of Leads: 3- or 5-lead Lead View: User-selectable; I, II, III, aVR, aVL, aVF, V (5-lead); I, II, or III (3-lead) Gain Selection: x1/2, x1, x2, and x4 Frequency Response: Diagnostic: 0.05 to 100 Hz (-3dB) Monitor: 0.5 to 40 Hz (-3dB) Electrosurgery Protection: Yes Defibrillator Protection: Yes Pacer Detection/Rejection: Yes Pulse Oximetry Range: 1% to 99% Resolution: 1% Accuracy: 70% to 99% range: ±2%; 50% to 69% range: ±3%; <50%: unspecified Method: Dual wavelength LED Non-Invasive Blood Pressure Technique: Oscillometric during Inflation Inflation Pressure Range: Adult/Pediatric: 30 to 300 mmHg Neonate: 20 to 150 mmHg Measurement Cycle: < 40 sec. average Auto. Measurement: 2, 3, 5, 10, 15, 30 min; 1, 2, 4 hour intervals STAT Mode: 5 minutes of consecutive readings Resolution: 1mmHg Transducer Accuracy: ±2mmHg or ±2%, whichever is greater Clinical Accuracy: Complies with AAMI SP-10:2002 Heart (Pulse) Rate Source: User selectable: Smart, ECG, Pleth, NIBP Range: 20 to 300bpm (30-240bpm, NIBP) Accuracy: ±1bpm or ±1% (ECG), whichever is greater Temperature Channels: 1 Range, Accuracy: 68° to 113° F (20° to 45° C): ±0.1° C Display Resolution: ±0.1° C Probe: YSI-400 and YSI-700 series Trends Memory: 24 hr at 30 second intervals with an NIBP reading every 3 minutes. Display: Tabular, Graphical Interface & Display Keys: 9; membrane-activated Rotary knob: Push and rotate; 24 steps/turn Screen: 10.4" active color TFT Resolution: 640 x 480 pixels Waveforms: 6, maximum Waveform Types: ECG leads I, II, III, aVR, aVL, aVF, V; Respiration; CO2, Pleth; ST Histograms Sweep Speed: 6.25, 12.5, 25, 50mm/sec Languages: English, French, German, Italian, Portuguese, Spanish, Russian, Chinese System Outputs Nurse Call: Contact switch; 3.5 mm phone COM Port: RS232 compatible, DB9 (Com 1) Defib/Sync: BNC connector Video Port: High density D-sub 15-pin serial VGA compatible Power Requirements Voltage: 100 to 240 VAC; 50/60 Hz Power Consumption: 35 Watts, typical Environmental Operating Temperature: 59° to 95° F; 15° to 35° C Storage Temperature: 23° to 122° F; -5° to 50° C Operating Humidity: 15% to 90%, non-condensing Capnography (CO2) Units: mmHg; %; kPa; Torr Method: Non-dispersive infrared; autocalibrating N2O Compensation: Manual; On/Off, user selectable Range: 0 to 99mmHg; 0 to 12.5% Resolution: 1mmHg; 0.1%; 0.1 kPa; 0.1 Torr Flow, Sample Rate: Sidestream; 200ml/min Accuracy: ±2mmHg, ±0.3 volume %, ±0.3 kPa, or ±2 Torr at 200 ml/min & respiratory rate <= 120 bpm Rise Time: 170ms (10-90%) at 200ml/min Printer Type: Thermal line printer Paper Speed: 12.5, 25, 50 mm/sec Office Management Software Compatibility – CSI products are compatible with the following OMS products below. Kodak WINOMS CS by Carestream Dental LLC TiME for OMS by Decision Base, Inc. U.S. HealthRecord powered by TeamLINKS, Inc. Oral Surgery-Exec® by DSN Practice Management Software OMSVision® by HenrySchein Practice Software Windent® by Carestream Dental LLC MD-REPORTS ProVation® Medical gMed Endosoft®
Shipping Information
Please Inquire
Warranty & Returns
Warranty Information 2-Year Warranty
