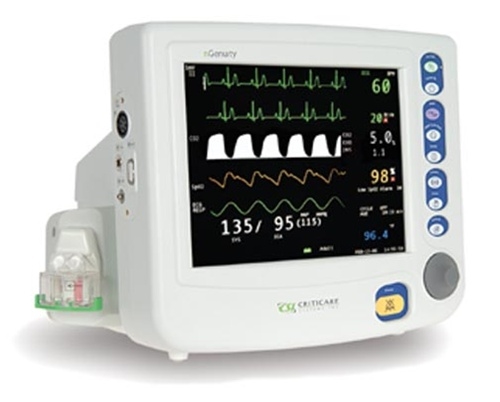

The nGenuity™ 8100E1 series patient monitors are the perfect choice for busy departments demanding accurate, reliable performance. Compact and lightweight, the nGenuity 8100E1 patient monitor can monitor adult and pediatric patients in virtually every department - at bedside or in transit. The innovative user interface features simplified menus and dedicated function keys for timely set-ups. The big, bright display with large numeric's can easily be seen, even from across the room. The nGenuity 8100E1 patient monitor displays true end-tidal CO2 with numerical ETCO2 and INCO2 values as well as capnographic waveform. A smart respiration feature automatically defaults to the best available source, either CO2 or ECG TTI. Criticare's advanced design capnography module is accurate with breath rates up to 120 breaths per minute. Flow rate is set at 200 mL per minute for exceptionally fast response. A rise time responsiveness within 170 milliseconds provides outstanding waveform display. The capnography module uses sidestream sampling and Criticare's patented WaterChek™ water traps to remove moisture without distortion to the CO2 waveform. The water traps have a large 22 mL reservoir and full occlusion clearing capability unlike many other CO2 monitoring systems. Features and Benefits Standard features ECG, ComfortCuff® NIBP, DOX® SpO2, Heart Rate, Temperature, Respiration and Nurse Call interface connection. Monitors End-tidal CO2 and inspired CO2 accurately at high respiration rates. Gas Monitoring with full occlusion clearing and high capacity water trap. Mini-Trends can display condensed tabular vital signs data to show recent monitoring activity. Compatible with popular Electronic Medical Records (EMR) systems for both large facilites and small offices. Easy-to-read 10.4" active TFT color display. Easy to learn, easy to use -- simplified menus and dedicated function keys. Monitor can mount quickly and easily to walls and roll stands.
Materials Included 8100E1 Patient Monitor (1) SpO2 Adult Sensor (1) Child/Small Adult NIBP Cuff (1) Adult NIBP Cuff (1) Large Adult NIBP Cuff (1) ECG Cable (3) Electrodes (1) Rechargeable battery (1) Power Cord (1) CO2 Sidestream (1) CO2 Sensor (5) Water Traps (5) Sample Line User Manual
Technical Specifications Dimensions: Width: 13" Height: 11" Depth: 10.3" Weight: 14 lbs ECG Number of Leads: 3- or 5-lead Lead View: User-selectable; I, II, III, aVR, aVL, aVF, V (5-lead); I, II, or III (3-lead) Gain Selection: x1/2, x1, x2, and x4 Frequency Response: Diagnostic: 0.05 to 100 Hz (-3dB) Monitor: 0.5 to 40 Hz (-3dB) Electrosurgery Protection: Yes Defibrillator Protection: Yes Pacer Detection/Rejection: Yes Pulse Oximetry Range: 1% to 99% Resolution: 1% Accuracy: 70% to 99% range: ±2%; 50% to 69% range: ±3%; <50%: unspecified Method: Dual wavelength LED Non-Invasive Blood Pressure Technique: Oscillometric during Inflation Inflation Pressure Range: Adult/Pediatric: 30 to 300 mmHg Neonate: 20 to 150 mmHg Measurement Cycle: < 40 sec. average Auto. Measurement: 2, 3, 5, 10, 15, 30 min; 1, 2, 4 hour intervals STAT Mode: 5 minutes of consecutive readings Resolution: 1mmHg Transducer Accuracy: ±2mmHg or ±2%, whichever is greater Clinical Accuracy: Complies with AAMI SP-10:2002 Heart (Pulse) Rate Source: User selectable: Smart, ECG, Pleth, NIBP Range: 20 to 300bpm (30-240bpm, NIBP) Accuracy: ±1bpm or ±1% (ECG), whichever is greater Temperature Channels: 1 Range, Accuracy: 68° to 113° F (20° to 45° C): ±0.1° C Display Resolution: ±0.1° C Probe: YSI-400 and YSI-700 series Trends Memory: 24 hr at 30 second intervals with an NIBP reading every 3 minutes. Display: Tabular, Graphical Interface & Display Keys: 9; membrane-activated Rotary knob: Push and rotate; 24 steps/turn Screen: 10.4" active color TFT Resolution: 640 x 480 pixels Waveforms: 6, maximum Waveform Types: ECG leads I, II, III, aVR, aVL, aVF, V; Respiration; CO2, Pleth; ST Histograms Sweep Speed: 6.25, 12.5, 25, 50mm/sec Languages: English, French, German, Italian, Portuguese, Spanish, Russian, Chinese System Outputs Nurse Call: Contact switch; 3.5 mm phone COM Port: RS232 compatible, DB9 (Com 1) Defib/Sync: BNC connector Video Port: High density D-sub 15-pin serial VGA compatible Power Requirements Voltage: 100 to 240 VAC; 50/60 Hz Power Consumption: 35 Watts, typical Environmental Operating Temperature: 59° to 95° F; 15° to 35° C Storage Temperature: 23° to 122° F; -5° to 50° C Operating Humidity: 15% to 90%, noncondensing Capnography (CO2) Units: mmHg; %; kPa; Torr Method: Non-dispersive infrared; autocalibrating N2O Compensation: Manual; On/Off, user selectable Range: 0 to 99mmHg; 0 to 12.5% Resolution: 1mmHg; 0.1%; 0.1 kPa; 0.1 Torr Flow, Sample Rate: Sidestream; 200ml/min Accuracy: ±2mmHg, ±0.3 volume %, ±0.3 kPa, or ±2 Torr at 200 ml/min & respiratory rate <= 120 bpm Rise Time: 170ms (10-90%) at 200ml/min Warranty Information
