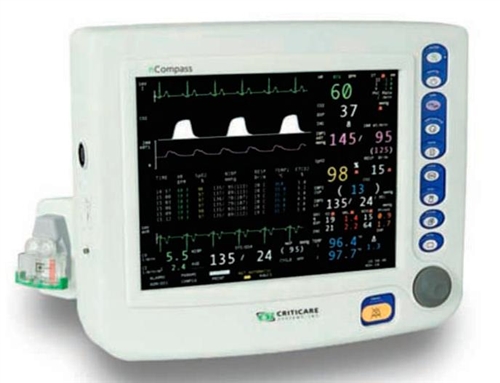

Criticare nCompass 81H031PD Vital Signs Monitor w/ 3 Channel IBP, CO2 & Printer

Criticare nCompass 81H031PD Vital Signs Monitor w/ 3 Channel IBP, CO2 & Printer

Brand:   Criticare
Condition:   New
The nCompass™ 81H031PD monitor is the perfect choice for busy departments demanding accurate, reliable performance.
Quantity:
Have a question? Feel free to Ask a question
Please Sign In to Buy     |    $5,688.86
If you just logged in, please refresh the page

Details

The nCompass™ 81H031PD monitor is the perfect choice for busy departments demanding accurate, reliable performance. The 81H031PD monitor can monitor adult and pediatric patients in virtually every department. The innovative user interface features simplified menus and dedicated function keys for timely setups. The big, bright display with large numerics can easily be seen from across the room. Features and Benefits Easy-to-read 12.1" active color TFT display. Easy to learn, easy to use with simplified menus and dedicated function keys. Mini-Trends can display condensed tabular vital signs data to show recent monitoring activities. Cardio-Respirogram Trend Display. Compatible with popular Electronic Medical Records (EMR) systems for both large and small offices. CO2 monitoring incorporates CSI’s patented water trap design with full occlusion clearing. Monitor mounts quickly and easily to walls and roll stands. Monitor includes an integrated printer. Invasive cardiac output interface capability comes in 3 channel

Additional Information

Materials Included (1) 81H031XD Vital Signs Monitor (1) Adult SpO2 Sensor (1) NIBP Hose (1) Child/Small Adult NIBP Cuff (1) Adult NIBP Cuff (1) Large Adult NIBP Cuff (1) ECG Cable (3) Electrodes (1) Rechargeable Battery (1) Power Cord (1) CO2 Sidestream (1) CO2 Sensor (1) Printer (1) Paper Roll (5) Water Traps (5) Sampling Line User Manual

Tech Specs

Technical Specifications ECG Number of Leads: 3- or 5-Lead Lead View: User-selectable; I, II, III, aVR, aVL, aVF, V (5-Lead); I, II, or III (3-Lead) Gain Selection: x0.5, x1, x2, and x4 Frequency Response: Diagnostic: 0.05 to 100 Hz (-3dB); Monitor: 0.5 to 40 Hz (-3dB); ST: 0.05 to 40 Hz (-3dB) Electrosurgery Protection: Yes Defibrillator Protection: Yes Pacer Detection/Rejection: Yes ST Accuracy: ±0.2 mm or ±5% of reading, whichever is greater, over heart range of 30 to 120 bpm ST Range: -6.0 to 6.0 mm NIBP (Non-Invasive Blood Pressure) Technique: Oscillometric measure upon inflation Measurement Cycle: < 40 sec. typical Auto. Measurement Cycles: 2, 3, 5, 10, 15, 30 min; 1, 2, 4 hr Max. Allowable Cuff Pressure: Adult/Pediatric: 300 mmHg; Neonate: 150 mmHg Range: Adult/Pediatric: 30-300 mmHg; Neonate: 20-150 mmHg Resolution: 1 mmHg Transducer Accuracy: ±2 mmHg or ±2% or reading, whichever is greater, over full range STAT Mode: 5 min of consecutive readings Clinical Accuracy: Complies with AAMI SP-10:2002 Pulse Oximetry Range: 1% to 99% Resolution: 1% Accuracy: 70% to 99% range: ±2%; 50% to 69% range: ±3%; < 50%: unspecified Method: Dual wavelength LED Heart (Pulse) Rate Source: User selectable: Smart, ECG, Pleth, NIBP, IBP Range: 20 to 300 bpm (ECG, Pleth); 30-240 bpm (NIBP); 30-300 bpm (IBP) Accuracy: ±1 bpm or ±1% (ECG) whichever is greater Temperature Channels: 2 Range, Accuracy: 68° to 113°F (20° to 45°C): ±0.1°C Display Resolution: ±0.1° Probe: YSI-400 and YSI-700 Series Respiration Rate: 6 to 150 bpm (ECG); 2 to 120 bpm (CO2) Resolution: 1 bpm Accuracy: ±2 bpm or ±2%, whichever is greater Source: User selectable: Smart, CO2, ECG CO2 Units: mmHg; %; kPa; Torr. Method: Non-dispersive infrared; autocalibrating. N2O Compensation: Manual (On/Off). Range: 0–99 mmHg; 0–12.5%; 0–12.5 kPa; 0–99Torr. Resolution: 1 mmHg; 0.1%; 0.1 kPa; 1 Torr. Flow, Sample Rate: 200 ml/min. Accuracy: ±2 mmHg; ±0.3 vol. %; ±0.3 kPa; ±2 Torr or ±4% of reading, whichever is greater, at 200 ml/min & respiratory rate of ≤ 120 bpm. Rise Time: 170 ms (10–90%) at 200 ml/min. Alarms Indication: Audible; Visual (EN 60601-1-8) Silence: Yes; 2 minutes or permanent. Trends Memory: 24 hours at 30 second intervals. Display: Tabular, Graphical. IBP (Invasive Blood Pressure) Channel: 3 Transducer Sites: Selectable: ART, PA, LV, RV, LA, RA, CVP, ICP. Pressure Range: -10 mmHg to 300 mmHg. Transducer: Freq. Response 0–20 Hz; Impedance >300 ohms; Sensitivity 5μV/V/mmHg. Accuracy: ±1 mmHg or ±1%, whichever is greater. Display Screen: 12.1” active color touch screen Waveforms: 6, maximum Waveform Types: ECG Leads I, II, III, aVR, aVL, aVF, V; CO2; Respiration; Pleth; IBP; breath-by-breath CO2; ST Histograms; Mini-Trends; OXY-CRG Sweep Speed: 6.25, 12.5, 25, or 50 mm/sec Controls Keys: 10; membrane-activated. Rotary Knob: Push and rotate; 24 steps/turn. System Outputs COM ports: Two RS232-compatible DB9 ports; USB (for software downloads only). Nurse Call: Contact switch; 3.5 mm stereo phone jack, 14 mm. Defib/Sync BNC connector. Video Port: Serial VGA compatible. DC Out: 5 VDC output for optional wireless accessory. External Module Port: 8-PIN circular connector. Physical Properties Weight: 12 lbs; 5.4 kg. Size: 12” (H) x 14.5” (W) x 11.5” (D); 30.5 cm (H) x 36.8 cm (W) x 29.2 cm (D) Power Requirements Voltage: 100 to 240 VAC; 50/60 Hz. Power Consumption: 35 W, typical. Battery: 1 sealed lead acid. Battery Life: 2 hours, typical (3 hours, typical for base unit). Recharge Time: 4 to 6 hours, typical. Environmental Operating Temperature: 32° to 104°F (0° to 40°C). Storage Temperature: 23° to 122°F (-5° to 50°C). Operating Humidity: 15% to 90%, noncondensing. Operating Altitude: -300 to 3,000 meters. Classification Medical Device: Class II Equipment (IIb EU). Electrical Protection: Class I Equipment. Degree of Protection: Type CF, Defibrillator-proof. Protection Against Ingress: IPX1. Safety: EN 60601-1. Printer Type: Thermal line printer. Paper Speed: 12.5, 25 or 50 mm/sec. Office Management Software Compatibility – CSI products are compatible with the following OMS products below. Kodak WINOMS CS by Carestream Dental LLC TiME for OMS by Decision Base, Inc. U.S. HealthRecord powered by TeamLINKS, Inc. Oral Surgery-Exec® by DSN Practice Management Software OMSVision® by HenrySchein Practice Software Windent® by Carestream Dental LLC MD-REPORTS ProVation® Medical gMed Endosoft®

Shipping Information

Please Inquire

Warranty & Returns

Warranty Information 2-Year Warranty
