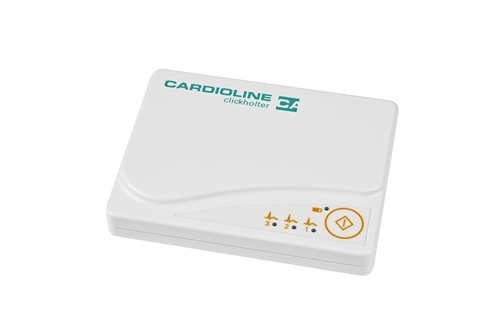

The Cardioline ClickHolter Recorder is a portable ECG signal recorder (Holter) able to save data without the need for removable media. The data is rapidly and safely transferred to a Personal Computer for subsequent analysis, thanks to the USB connection interface. The technical solutions adopted ensure the maximum patient comfort - minimum size, low weight, reliable recording and the best working conditions for the operators: two different work modes “stand alone” and “interactive”-, dual recording quality control system, fast downloading of recordings, cancellation of the test-patient association risks. Feature and Benefits Easy patient preparation: check signal quality and activation of recording without need for external instruments. Control all preparation and recording programming phases directly at PC. 3 lead recording in simultaneous mode for 24/48 hours. Pace-maker impulse detection on a dedicated channel. Dual recording start-up system. Low weight and small size. Powered by two 1.5 V AA alkaline batteries. Suitable for recordings on for neonatal weighing less than 10 kg. High signal resolution.
Materials Included ClickHolter Recorder Unit 10-Lead Patient Cable USB Cable Belt Pouch 25 Electrodes User Manual
Technical Specifications ECG Channels: 3 Type of Recording: Continuous digital acquisition Recording Medium: Internal flash memory Memory Size: 64 MB Patient Impedance Detection: Independent for each lead Saturation Detection: Independent for each lead Service Connector: USB cable Resolution: 10 BITS; 11 microV/bit LSB Frequency Response: 0.05 – 55 Hz Dynamic AC: 10mVpp Dynamic DC: ±300 mV DC signal superposition CMRR: >60dB Sampling Frequency: 250 Hz per channel for 24 hours or 125 Hz per channel for 48 hours Input Impedance: >10 Mohm Patient Cable: 5 wires, 7 wires optional Event Marker: Through keyboard Data Transfer: Through USB cable ECG Display: In real time 3 channels on PC monitor Power Supply: 2 x AA 1.5V batteries Dimensions & Weight: 110x83x17 mm, 160 gr. (including batteries)
