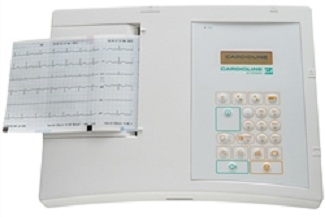

The ar1200adv is a lightweight, portable electrocardiograph with integrated 6 channel high resolution thermal printer, LCD display showing program input and operating status and alphanumeric keyboard. The machine has two operating modes - manual and automatic - and is supplied with an internal rechargeable battery. The optional Bluetooth add-on enables PC-storage of ECGs. Thanks to the flexibility of the software used and to the infrared interface, the ar1200adv can be adapted at any given moment to suit your individual requirements. Features and Benefits Meets newest FAA standards for EKG report submission! (FAA Class I Physicals) Dual power supply system (mains and rechargeable internal batteries) Records ECG in automatic, manual and pre-programmed mode; Prints the ECG signal in high resolution on 120mm paper with its thermal printer in various formats: 3, 3+R and 6 channels. Memorizes the last automatic ECG in automatic mode for later printout of copies as required. Calculation of the main ECG parameters. Memory option: storage of up to 20 full ECG exams, with no need to print out the ECG.
Materials Included Materials Included Patient Cable 1 Roll & 1 Pack of ECG Paper 100 Electrodes Clips Battery Power Cord Manual
Technical Specifications Main Supply: External power supply 230V±10% 50/60 Hz Battery: Rechargeable battery pack NiMH 10x1.2 Vdc; 1800 mAh Leads: 12 Standard or Cabrera leads Input Dynamics: ± 300 mV @ 0 Hz.± 5 mV in pass band Common Mode Rejection: >94 dB with balanced impedance Frequency Response: 0.05 - 190 Hz (-3dB) Signal Memory: 10 s for each lead in automatic mode Recording Sensitivity: Manual: 2.5 – 5 – 10 – 20 mm/mV ± 5% Writing System: Thermal printer, 8 dot/mm Print Channels: 6 Thermo-Sensitive Paper: Length 20 m, page 120x100 mm gridded, rolls Pacemaker Recognition: Recognizes pulse in accordance with current IEC standards Filters: Mains interference: modified notch 50–60 Hz Muscular Noise: 3 cut-oﬀ frequencies: 20, 25 and 35 Hz Anti-Drift: 0.5 Hz high pass, linear phase. Keyboard: Membrane with functional simplified alphanumeric keyboard. Display: 120x32 pixel back-lit LCD. Standby Time: Internal battery: 2 hours in single channel mode. Recharging Time: . Internal battery : 14 hours 100% Dimensions: 320 x 72 x 240 mm (length x height x depth) Weight: 8.2 lbs.
