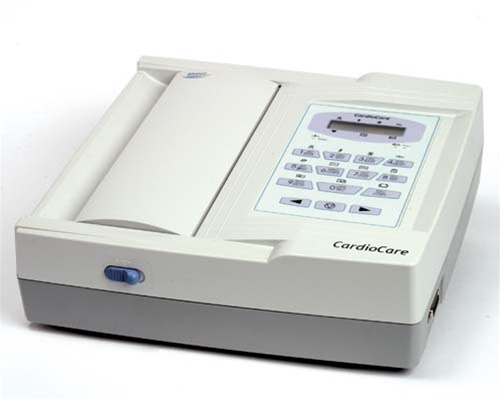

CardioCare 2000 Interpretive EKG Machine (PC Connecting Software Included)

CardioCare 2000 Interpretive EKG Machine (PC Connecting Software Included)

Brand:   CardioCare
Condition:   New
The CardioCare 2000 is an economically priced 12 channel resting ECG that does not compromise on performance.
Quantity:
Have a question? Feel free to Ask a question
Please Sign In to Buy     |    $1,255
If you just logged in, please refresh the page

Details

Now comes with free EKG II Plus Software . This allows you to preview and control your Bionet EKG machine from your windows-based computer. A cost-effective 12-lead ECG machine! The CardioCare 2000 is an economically priced 12 channel resting ECG that does not compromise on performance. Suitable for use in private practice, ER, or hospital use, the CardioCare 2000 is designed for maximum ease of use and convenience. Software upgradeable and networkable, the CardioCare 2000 is an excellent choice for your diagnostic needs. Features and Benefits Acquire 10 full seconds of ECG data simultaneously from 10 leads to produce an accurate 12 channel printout with analysis in under 60 seconds! Over 80 kinds of interpretation results based on the advanced Minnesota Code are provided to aid your diagnosis. The interpretation algorithms are expanded with regular software updates. Produce full size A4 printouts in 1,3,6 and 12ch formats. Full size print-outs improve readability and make for easier filing in the patient chart. Convenient Copy button generates ECG copies in any of the available formats. Uses normal fax paper which costs about ΒΌ the cost of ECG paper. It will even generate it's own grid! Direct faxing from the CardioCare 2000 offers much clearer ECG reports at the receiving end. Using an external modem connected to the CardioCare 2000, the user can easily transmit the ECG report to a remote location. Sample Output Sample Output Sample Output Sample Output 1 channel + 1 Rhythm 3 channel + 1 Rhythm 1 channel (60 sec 1 Rhythm)

Additional Information

Materials Included Promotion - An additional 10 rolls of paper and 1 bag of electrode is given free with purchase. Promotional items will be drop shipped 2-4 weeks after purchase. Power Cable Patient Cable 100 Electrodes Chart Paper Operation Manual

Tech Specs

Technical Specifications: ECG Leads: 12 lead simultaneous 10-second resting ECG Dimensions: 296 (w) x 305.5 (h) x 92.5 (d) mm, Approximately 2.98 kg Recording Channel: 3,6,12 channel and 1 channel (60 sec) Sensitivity: 5, 10, 20 auto (I~aVF: 10, V1~V6:5) mm/mV Printing Speed: 12.5, 25, 50 mm/s Filters: AC (50/60 Hz, -20dB or better), Muscle (25~35Hz, -3dB or better), Base Line Drift (0.1Hz, -3dB or better) Low pass filter (off, 40Hz, 100Hz, 150Hz) Display: 2 x 16 character LCD display LCD display: LED indicator Recorder: Thermal print head, thermal roll paper Effective Writing Width: 204mm Internal Noise: 20uV(p-p) max Input Circuit: Floating input Input Impedance: >10MQ Input Range: > +/- 5mVCommon Mode Rejection: > +100dB DC Offset Voltage: > +/- 300mV Time Constant: 3.2 sec Patient Leakage Current: <10uA Frequency Response: 0.05~150Hz Power Supply: AC or built-in Battery (option) Power Requirement: 100 - 240 Vac, 50/60Hz, 1.0 - 0.5A Power Consumption: 60w max Battery Capacity: 1 hour of normal use (approximately 100 automatic ECG printouts) Communication: PC connection with RS-232 interface and LAN Safety: Class 1, Type BF Conformity: CE, CSA

Shipping Information

Please Inquire

Warranty & Returns

4-Year Warranty
