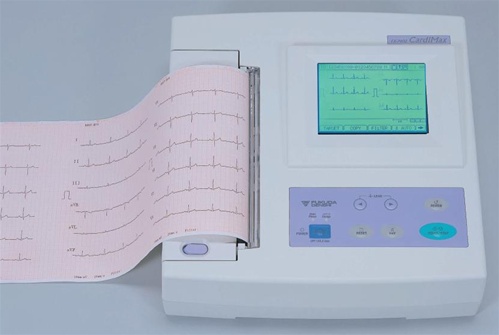

CardiMax FX-7402 Electrocardiograph Machine
Details
The CardiMax FX-7402 Electrocardiograph is a 12-channel print EKG featuring both criteria explanation and arrhythmia analysis functions. Features and Benefits A4 size recording format Clear ECG display Touch Screen for easy operation Alpha-numeric Keyboard Two-way power supply AC PCMCIA card for data filing and software upgrade Interface for data transmission
Tech Specs
Technical Specifications EKG Leads: Standard 12 leads Sensitivity Selection: 1/4, 1/2, 1, 2 cm/mV; manual or automatic Time Constant: 3.2 sec or greater Frequency Response: 0.05 Hz to 150 Hz (Within -3dB) Common Mode Rejection Ratio: 103 dB or greater Max. Electrode Potential: +-550mV or greater A/D Conversion: 18 bits Sampling Frequency: 8000 samples/sec/channel Internal Memory: 128 measurements or greater Communication Port: LAN port (10Base-T) Filters: AC: 50 or 60 Hz, -20dB or less Muscle: 25 or 35 Hz, -3dB (-6dB/oct) Drift: 0.25 or 0.5Hz, -3dB (-6dB/oct) Display Device: Backlight LCD with Touch Screen Display Area: 115mm (H) x 86mm (V) Resolution: 320 x 240 dots Representation: 3/6/12 channels/display Recorder Method: Thermal dot array Paper Speed: 5, 10, 12.5, 25 or 50mm/sec Recording Paper: Roll - Roll, 210mm x 30m (OP-69TE) General Power Requirements: 100 to 240V AC Universal (AC Adapter Type), 50/60Hz, or 9.6V (optional rechargeable battery) Dimensions: 335 (W) x 346 (D) x 100 (H) mm Weight: Approx. 6 Kg (w/o battery)
Shipping Information
Please Inquire
Warranty & Returns
3-year warranty
