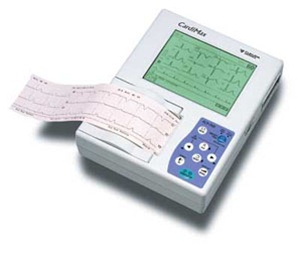

CardiMax FCP-7101 Electrocardiograph Machine

CardiMax FCP-7101 Electrocardiograph Machine

Brand:   CardiMax
Condition:   New
Built-in Large LCD (320 x 240 dots).
Have a question? Feel free to Ask a question
Please Sign In to Buy     |    $1,995
If you just logged in, please refresh the page


The CardiMax FX-7102 Electrocardiograph is a compact 3-channel print EKG featuring both criteria explanation and arrhythmia analysis functions. Features and Benefits Built-in Large LCD (320 x 240 dots) 3, 6, 12 Lead ECG Display 1/3 channel on 50/63mm paper 3 Channel recorder with selectable recording formats Internal Memory for ECG Storage Compact size allows for a wide range of applications LAN port for external communication Multi language

Tech Specs

Technical Specifications EKG Leads: Standard 12 leads Sensitivity Selection: 1/4, 1/2, 1, 2 cm/mV; manual or automatic Time Constant: 3.2 sec or greater Frequency Response: 0.05 Hz to 150 Hz (Within -3dB) Common Mode Rejection Ratio: 103 dB or greater Max. Electrode Potential: +-550mV or greater A/D Conversion: 13 bits Sampling Frequency: 1000 samples/sec/channel Internal Memory: 128 measurements or greater Communication Port: LAN port (10Base-T) Filters: AC: 50 or 60 Hz, -20dB or less Muscle: 25 or 35 Hz, -3dB (-6dB/oct) Drift: 0.25 or 0.5Hz, -3dB (-6dB/oct) Display Device: LCD Display Area: 115mm (H) x 86mm (V) Resolution: 320 x 240 dots Representation: 3/6/12 channels/display Recorder Method: Thermal dot array Paper Speed: 5, 10, 12.5, 25 or 50mm/sec Recording Paper: Roll - 63mm x 30m (OP-119TE) , Z-fold: 63mm x 20m (OP-122TE) General Power Requirements: 100 to 240V AC Universal (AC Adapter Type), 50/60Hz, 70VA or 9.6V (optional rechargeable battery pack), 40W Dimensions: 225 (W) x 180 (D) x 50 (H) mm Weight: Approx. 1.2 Kg (w/o battery)

Shipping Information

Please Inquire

Warranty & Returns

3-year warranty
