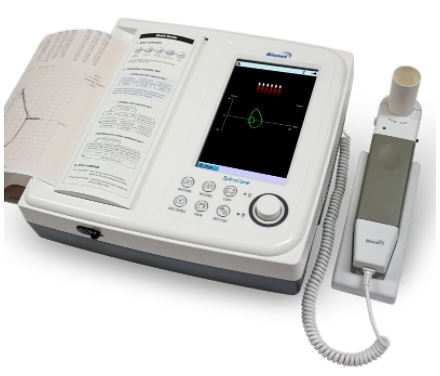

The SpiroCare unit is an accurate and hygienic spirometer. Features and Benefits Performance FVC (Forced Vital Capacity), SVC (Slow Vital Capacity), and MVV (Maximum Voluntary Maximum) test. Pre and post-bronchodilator comparison. Accurate measurement by using disposable mouthpiece with built-in sensor. PFT test report with interpretation. User-friendliness 7” color screen for displaying measurement in real time Touch interface for easily entering patient information Built-in printer and rechargeable battery USB barcode reader and keyboard can be attached through USB ports Disposable mouthpiece with patented sensing method is hygienic and eliminates the hassle of cleaning. Data management Saves up to 200 tests internally Exports the saved data to USB flash drive as JPEG/PDF/DCM file format Exports the saved data to computer running Windows based software, BMS-Plus, via WiFi or LAN.
Materials Included SpiroCare Main Unit (1) Spirometer Sensor (20) Disposable Mouthpieces (1) Medi-Graph Paper (1) Nose Clip (1) Mouthpiece Adapter (1) Power Cord (1) Diagnostic Guide Book (1) WiFi USB Dongle (1) USB Flash Drive with BMS-Plus Software (1) User Manual
Technical Specifications Dimensions: 11.6" x 12" x 1.3" Measuring Values: FVC: FVC, FEV 1.0, FEV 1/FVC, FEF 0.2-1.2l, fef 25-75%, FEF 75-85%, PEF, FEF 25%, FEF 50%, FEF 75%, FIVC, FEV6, PEFT, FET100%, Extrapolated Volume SVC: SVC, ERV, IRV, TV, EC MVV: MVV, FB, TV Presentation: Flow volume loop Flow time plot Measurement values table Measuring Range Flow: 0 to ± 14 L/s Volume: 0 to ± 12 L Measuring Method: Differential pressure method Sample Rate: 200 samples/sec Flow Impendance: < 0.2 mbar s/l at 12 l/s Measuring Accuracy: Complies with ATS (American Thoracic Society) Environment Ambient Temperature: 15 to 40°C (59 to 104°F) Relative Humidity: 10 to 90% (non-condensing) Atmospheric Pressure: 700 to 1060 hPa
Please Inquire
4-Year Warranty
