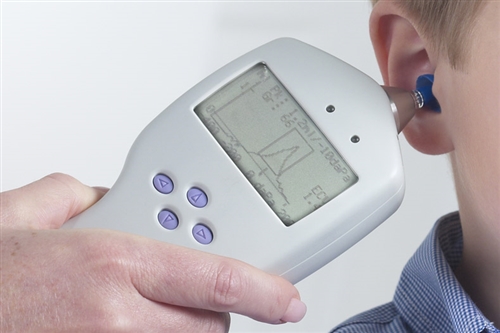

The Amplivox Otowave is shaped for success in accurate middle ear measurements. Features and Benefits Ergonomics Elegantly shaped to follow the contours of a hand and with a perfect weight distribution, tests can be completed with confidence and accuracy. Ease of Use The Otowave is very intuitive to use with on-screen information displayed before, during and after the test. The compliance peak, compliance peak pressure, gradient, ear canal volume and an ipsi lateral reflex test will be measured within seconds Comes in 1 channel frequency (1KHz) Recording results Results are displayed for review on a large high-resolution graphics display. Saved within internal memory with a patient identifier Printed via an infra-red connection to the optional portable printer; can connect wirelessly Transferred to a PC with an IrDA port, NOAH3 database with the included Amplivox impedance module Portability Lightweight and weighing under 1 pound, the Otowave is designed to be a totally portable ‘go anywhere’ instrument which is reliable, accurate and easy to use. The Otowave requires no external power or data cables.
Materials Included Otowave 102-1 Tympanometer Test Cavities 30 Disposable Ear-Tips 4 AA Batteries Carry Case CD with Operating Manual, Amplivox TympView & NOAH Impedance Module PC applications
Technical Specifications Tympanometry Measurements Probe Tone: 226Hz +/-0.1%, 85dB +/-2dB Pressure Range: +200daPa to -400daPa +/-10daPa Direction of Sweep: Positive to negative Volumetric Range: 0.2 to 5ml +/- 0.01ml or 10% over range whichever is greater Analysis Performed: Compliance peak level, compliance peak pressure level, gradient and equivalent ear canal volume Reflex Measurements Otowave 102-1: 1KHz Reflex dB range: 85 to 100 dBHL (programmable in 5 or 10 dB steps) Reflex Measurement Range: 0.01ml to 0.5ml +/-0.01ml Analysis Performed: Reflex maximum amplitude and pass/fail at each test level Data Management Internal Database 30 patient records Patient record identification Data transfer to designated printer or PC application Electronic Data Storage (Database PC Requirements): NOAH3 aud module Amplivox impedance module Infra-red PC port Printing Designated printer: high speed portable thermal printer Data transfer: Infra-red IrDA 9600 Baud Printing may also be completed via a PC with the relevant applications Physical Data Power (Battery): 4x Alkaline AA or 4x NiMH (>=2.3Ah) rechargeable Dimensions: Length: 8.25" Width: 3.1" Height: 1.5" Weight: .08 lbs (including batteries) Standards Safety: IEC 60601-1 EMC: IEC 60601-1-2 Impedance: IEC 60645-5-5 Type 2 Tympanometer ANSI 3.39 CE Mark: Complies to EU Medical Device Directive
