AM282 Manual Audiometer
Details

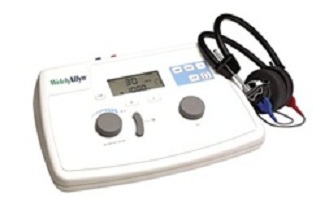

Welch Allyn brings precision audiometry to the table with the AM282 manual audiometer. This audiometer provides multiple frequencies (125 Hz to 8000 Hz) and wider intensity range in a compact, light-weight screening audiometer. Features and Benefits 11 frequencies: 125 Hz to 8000 Hz Wide intensity range Compact, lightweight design AC line power and battery Calibration storage for standard earphones and optional insert phones Ideal for physician’s office for screening audiometry
Additional Information
Materials Included Audiometry headset, external Carrying case Audiogram forms (1 pad of 50) Directions for Use manual Threshold audiometry card Power plug/power supply
Tech Specs
Technical Specifications Frequencies: 125, 250, 500, 750, 1000, 1500, 2000, 3000, 4000, 6000, 8000 Hz Accuracy: ± 2% Total Harmonic Distortion: < 2.5% measured acoustically at the maximum Hz for frequencies below 5000 Hz and measured electrically above 5000 Hz Tone Types: Continuous: Steady when present bar depressed Pulsed: 2.5 pulse/sec FM: ±5%, 5 Hz, triangular modulation Headset: Telephonics External Headset Earphones with Type 51 Cushions (60 ohm impedance) Power: Line Voltage: The AC-DC adapter is universal autoranging with an input voltage range of 90 - 264 V at 47 - 63 Hz Consumption: 1.5 watts Battery: 5 each alkaline AA 1.5 V, 5 each rechargeable nicad or NIMH AA 1.2 V Dimensions: 12.59” W x 8.76” D x 3.18” H (32 cm W x 22.3 cm D x 8.1 cm H) Weight: 2.55 lbs (1.16 kg) with 5 AA batteries
Shipping Information
Please Inquire
Warranty & Returns
1-Year Warranty
