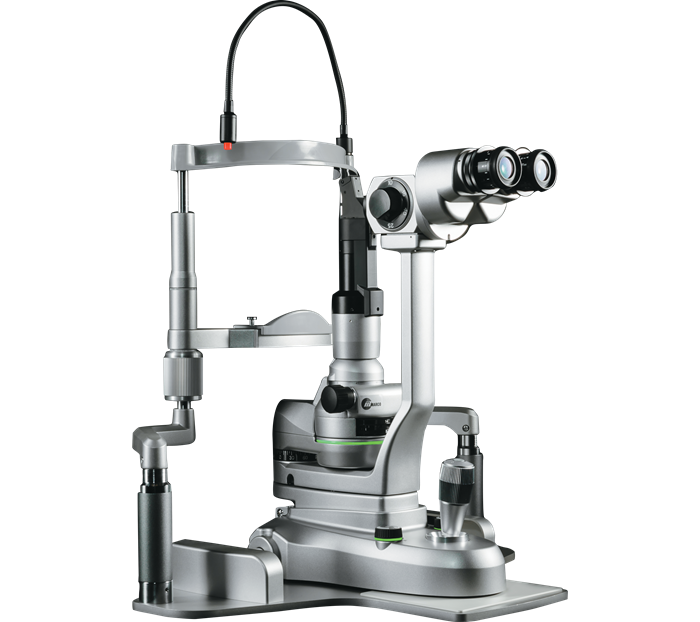

ULTRA M4 SLIT LAMP
Details
Today, the Ultra M Series introduces a new era of diagnostic empowerment. Marco has again established the latest standard in slit lamp examinations. Single-element, high-luminance LED illumination 5-power Parallel / Galilean optics 0-14mm continuously adjustable aperture Patented, built-in Background Illumination system for digital imaging Completely integrated (cable free) low voltage electronic system Expanded chin rest design for easier patient access Cobalt blue, Red-free, Yellow, Blue LED correction filters Self-contained headrest & baseplate assembly
Tech Specs
Type Binocular Stereomicroscope Parallel (Galilean) Light Source LED Light Source Configuration Compact/horizontal Background Illumination Yes Light Filters Blue, Red-free, Blue LED Correction Slit Width 0-14mm continuous variable Aperture Diaphragm Diameter (Ø) 14, 8, 5, 3, 0.3mm Total # Power Magnifications 5 (6.3x, 10x, 16x, 25x, 40x) Magnification Change 5 Position Rotating Drum Eye Pieces 16x wide-field, high-eyepoint Real Field of View (Ø) 35.9mm, 23.3mm, 14mm, 8.8mm, 5.5mm Interpupillary Adjustment 52-82mm Diopter Adjustment Range (+/-) 7 diopters Horizontal Coarse Movement 105mm Horizontal Fine Movement 15mm Vertical Movement 30mm Fixation Light Source Red LED on Flexible Arm Large Patient Chin Rest Yes Chinrest Elevation 95mm Power Supply AC100V-240V (+/-10%) Power Consumption DC5V 2A Weight 11.5Kg
