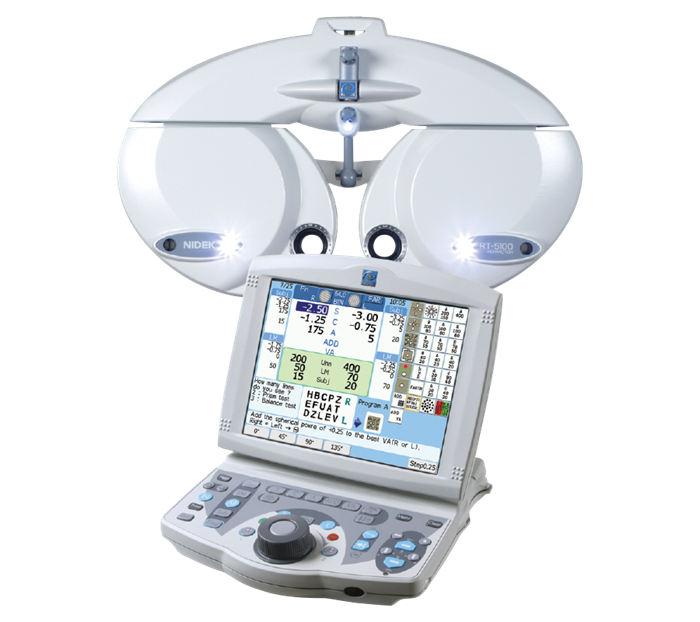

TRS-5100 DIGITAL REFRACTOR
Details
Replacing the standard refractor, it allows practitioners to control the entire refraction process from a keypad small enough to sit in your lap. And because the TRS-5100 is completely programmable, all the lenses are moved for you at the touch of a button, taking you to each new refraction step. While convenient for you, it is also helpful if you delegate refractions and want your technicians to perform the refraction steps in a specific order. Digital speed and accuracy instantly compares patients’ old & new Rx. The TRS can configure in the traditional lane or as part of the Epic workstation. Digital accuracy Split prism Jackson Cross cylinder Instantly compares old/new Rx 5 computer programs Measurable range -29D to 26.75D Cyl 0:00D to ±8.75D Portable control pad 8.4 inch color LCD touch screen Tiltable for patient viewing Minimizes repetitive stress injuries
Tech Specs
Measurement Range Sphere -29.00 to +26.75D (0.12D / 0.25D / 1D / 2D / 3D steps) Cylinder 0 to ±8.75 D (0.25D / 1D / 2D / 3D steps) Axis 0 to 180° (1° / 5° / 15° steps) PD 48 to 80mm (far vision) 50 to 74mm (near vision) (0.5 / 1mm steps) 54 to 80mm (Far PD at which both batteries can converge) Rotary Prism 0 to 20D (0.1 / 0.5 / 2D increments) 0 – 20D (0.5D, 1D, 2D steps) Auxiliary Lenses Occluder, Polarizing Lenses, Pin Hole (1mm), 10 base-in prism, Red Maddox Horizontal (right eye), 6 base-up prism, Red Maddox Vertical (left eye), Cross mark for P.D., Red Lens (right eye), .50 fixed cross cylinder, Green Lens (left eye), Retinoscopic Lens, (+1.5D, +2.0D) Refraction Distance for Near Vision 350 to 700mm (50mm increments) Visual Field 40° (VD = 12mm) 39° (VD = 13.75mm) Forehead Rest Adjustment 14±2mm Vertex Distance 12-20mm (12, 13.75, 16, 18, 20mm) General Information Horizontal Level Adjustment ±2.5° Display 8.4-inch color LCD with touch screen Printer Built-in IC Reader/Writer Built-in Power Supply AC 100 / 120 / 230V / 50 / 60Hz Power Consumption 120 VAC Dimensions and Weight Refractor Head Main Body 15.94 x 4.0 x 10.86” / 12.8” with bracket / 7.7 lbs. Control Box 8.66 x 8.1 x 7.87” / 4.2 lbs. Relay Box 7.63 x 8.93 x 2.83” / 8.8 lbs. Printer 4.0 x 3.38 x 4.76” / 0.66 lbs. TRS Arm Electromagnetic lock, fully moveable up/down and back/forth
