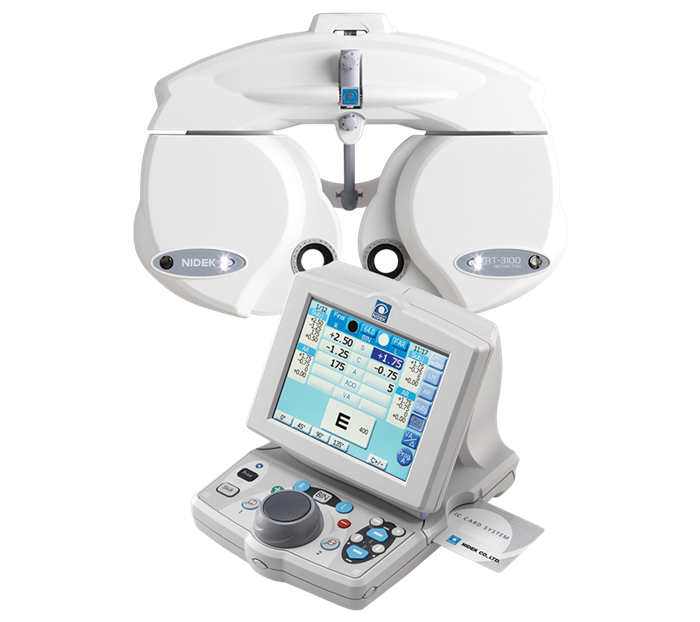

TRS-3100 DIGITAL REFRACTOR
Details
The built-in IC Card Reader allows for seamless integration and connection without any cable logistics. Used in a traditional lane, reduces refraction time and can be networked into a paperless EMR system. Positioned aggressively, this system features a dedicated Real Time processor that delivers outstanding operational speed, responsive specificity of function, tremendous simplicity of use, and the security of sustained performance integrity, and 40 years of Marco Customer Care Support. Digital accuracy 3 computer programs Instantly compares old/new Rx Measurable range -19D to +16.75D Cyl 0:00D to ±6D Portable control pad 5.7 inch color LCD touch screen Minimizes repetitive stress injuries
Tech Specs
Measurement Range Sphere -19.00 to +16.75D (0.25 / 0.50 to 3.00D increments) Cylinder 0.00 to ±6.00D (0.25 / 1.00D increments) Axis 0° to 180° (1°/5° increments) PD 48.0 to 80.0mm (far mode) 50.0 to 74.0mm (near working distance of 35 cm) 54.0 to 80.0mm (far PD possible for 100% convergence) Rotary Prism 0.0 to 20.0 ∆ (0.1 / 0.5 / 2.0 ∆ increments) Cross Cylinder Lens ±0.25D Occluder Pinhole Plate 2.0mm Red Maddox Rod Right eye: horizontal, Left eye: vertical Red/Green Filter Right eye: red, Left eye: green Polarizing Filters Right eye: 135˚, Left eye: 45˚ / Right eye: 45˚, Left eye: 135˚ Fixed Cross Cylinder Lens ±0.50D Spherical Lenses for Retinoscope +1.50 / +2.00D Dispersion Prism Right eye: 6 ∆ BU, Left eye: 10 ∆ BI* Refraction Distance for Near Vision 350 to 700mm (selectable in increments of 50mm) Visual Field 40˚ (VD = 12mm) Forehead Rest Adjustment 14 ±2mm VD Scale 12, 13.75, 16, 18, 20mm Horizontal Level Adjustment ±2.5˚ Display 5.7-inch color LCD Printer Built-in IC Reader/Writer Built-in Power Supply AC 100 to 240 V Power Consumption 80 VA Refractor Head Main Body (MB) 13.98 (W) x 3.94 (D) x 10.87 (H)" (without bracket) / 7.72 lbs. Control Box (CB) 6.30 (W) x 8.23 (D) x 6.50 (H)" / 3.75 lbs. Relay Box (RB) 7.64 (W) x 8.94 (D) x 2.40 (H)" / 4.40 lbs. Standard Accessories Near point card, Near point rod, Forehead rest, Face shield, Stylus pen, Dust cover, Communication cable (MB-RB, CB-RB), Printer paper (3 rolls), Power cord, Operator’s manual Optional Accessories Intelligent Cards (5 cards/set)
