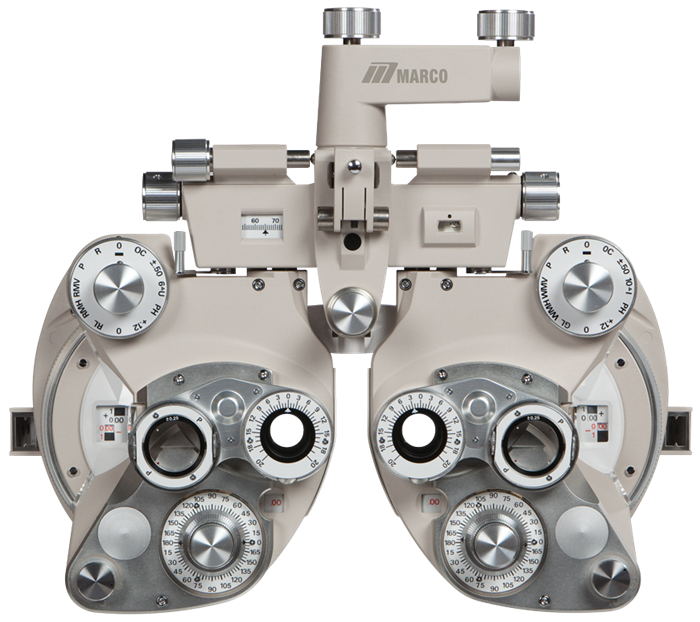

RT-700 MANUAL REFRACTOR
Details
The manual refractor meets the needs of the traditional practice with continuously adjustable illumination for sphere, cylinder, and axis measurement. Fully synchronized axis/cross-cylinder, and white prism/cross cylinder scales aid function and visibility. All supported by a standard 5-yr warranty. Classic industry design that primary eye-care practitioners demand from a traditional refractor Continuously adjustable LED illumination for sphere, cylinder, and axis measurements White prism, accessory, and cross-cylinder scales provide easier recognition in dim lighting conditions Fully-synchronized axis/cross-cylinder system Functional ‘wing-grip’ design provides easier maneuverability
Tech Specs
Sphere Power Range: +16.75 to –19.00 diopters Step: 0.25 diopters Cylinder Power Range: 0.00 to ±6.00 diopters 0.00 to ±8.00 diopters with additional lens of ±2.0 diopters) Cylinder Axis 0 to 180º, 5º steps Cross Cylinder ±.25 diopter, selectively synchronized with cylinder axis Rotary Prisms 0∆ to 20∆ , 1∆ steps Auxiliary Lens Dial (O) – Open aperture (two positions) (R) – Retinoscopic lens, +1.50D (P) – Polarizing lens 45º left eye, 135º right eye (WMV) White Maddox rod, vertical (RMV) Red Maddox rod, vertical (WMH) White Maddox rod, horizontal (RMH) Red Maddox rod, horizontal (RL) – red lens (GL) – green lens (+.12) – +0.12 sphere (PH) –Pin hole (10 l) or (6 U) – 10 base-in – left eye 6 base-up – right eye (Disassociating prisms) (±.50) – ±0.50 fixed cross cylinder (OC) – Occluder PD Adjustment 48 – 75mm, 1mm steps Convergence Adjustment Infinity to 400mm Forehead Rest Adjustment 16mm Vertex Distance 13.75mm from apex of cornea Dimensions/Weight 13.54(L) x 3.78(W)x 12.01(H); approximately 9.79 lbs. Standard Accessory Lenses ±0.25 Cross cylinder test lens +1.50 Retinoscopic lens Transformer (Power Supply) Input: 120VAC 60Hz 12W Output: 9VDC 800mA Standard Accessories Allen wrench, nearpoint card, nearpoint card holder, power transformer, accessory lens set, reading rod, face shields, dust cover, power cord tube, power cord clips Optional Accessories Patient face shield with plano cover lens
