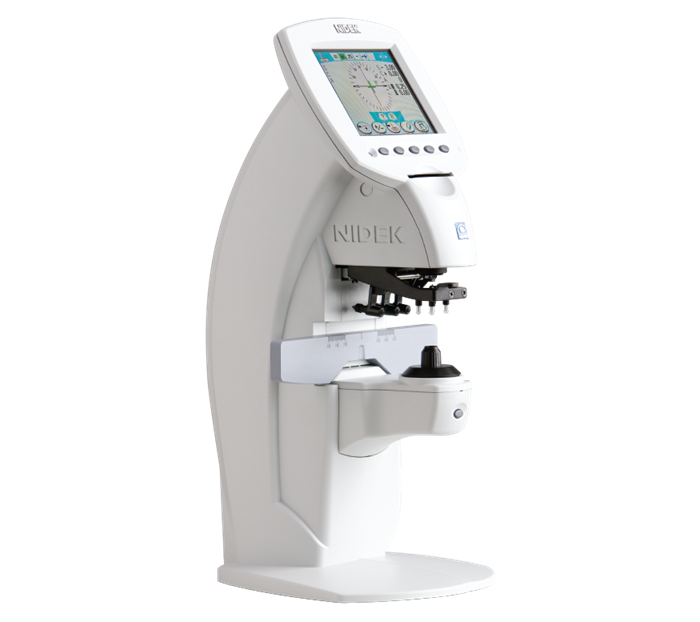

LM-600 SERIES AUTO LENSMETERS
Details
Faster detection and measurement acquisition offers unparalleled functionality and performance versatility, making it the most advanced automated lensmeter series available on the market today. Hartmann-Shack wavefront technology Green Sensor for high index lenses Automatic lens detection UV transmittance Sphere -25D to +25D, Cyl 0D to ±10D, Prism 20Δ 4.7" fixed color LCD screen ‘Smart’ IC card for data transfer Printer option in 600P model with auto feed and cut
Tech Specs
Measurable Range Sphere (Spectacle lenses) -25 to +25 D Sphere (Contact lenses) -25 to +25 D (BC=6.0 to 9.0), (0.01 / 0.06 / 0.12 / 0.25 D increments) Cylinder 0 to ±10 D (-, MIX, +), (0.01 / 0.06 / 0.12 / 0.25 D increments) Axis 0 to 180º (1º increments) ADD 0 to +10 D (Add, Ad2) Prism 0 to 20∆, (0.01 / 0.06 / 0.12 / 0.25∆ increments) Prism mode ∆, , Base In / Out, Base Up / Down UV transmittance 0 to 100% (1 or 5% increments) Measurable lens diameter Spectacle lenses 20 to 120mm Contact lenses Larger than the inner diameter of the nosepiece (ø5 mm) Measurable transmittance 10% and over (20% and over for ±15 to ±20 D) Compensation function for high index lenses The abbe number is changeable in the range of 20 to 60. Marking system Ink cartridge type Wavelength / Points measured 535 nm (green) / 108 within nosepiece Printer Thermal line printer with auto cutter (paper width: 58 mm) Power supply AC 100 to 240 V, 50 / 60 Hz Display Full graphic LCD with 4.7-inch color screen Interface RS-232C, USB Measuring time 0.09 sec. (minimum) Power Consumption 40 VA Dimensions / Weight 7.64”(W) x 16.07”(H) x 8.27”(D) 7.94 – 8.82 lbs. Standard Accessories Dust cover (1), fuse (2), power cord (1), contact lens holder (1), printer paper (4) Optional accessories RS-232C interface cable, USB cable (with driver), foot switch, marking cartridge (Blue & Red), IC card reader
