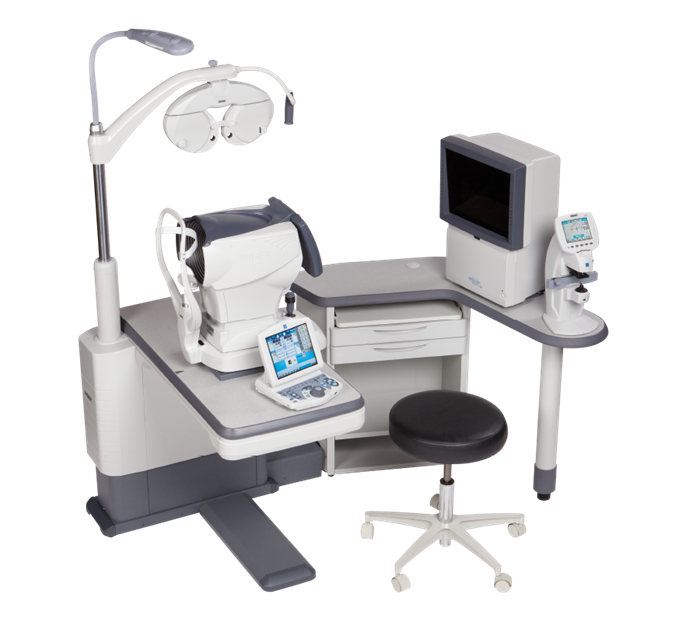

EPIC-5100 WORKSTATION
Details
Patient throughput has increased by 50-75% and patient satisfaction has never been higher. And, you have more time to spend as you like, for personal leisure or patient care. Meanwhile, your staff is more efficient and profits keep increasing. This is the EPIC refraction system at work. It’s today’s most innovative way to streamline operations, grow your business and build your dream practice. The EPIC decreases work-up times to less than 10 minutes and performs the refractions in 3-5 minutes. Now you can confidently delegate data gathering to your technicians and focus on data assessment, diagnosis and prescribing a final correction. Maximize office efficiency with a 4’x5’ refractive EPIC workstation that takes up less space than most utility closets. Patients are tested at the TRS-5100 digital refractor, autolensmeter, ARK/OPD-Scan III, and electronic chart without changing location. Compact, 4' x 5' multi-modality workstation redefines refractive efficiency Combines autolensmeter, ARK/OPD-Scan III, TRS-5100 digital refractor, and electronic chart The perfect workstation for delegation Glare testing capability (when outfitted with the electronic SSC-370MCG chart) Rapid testing means less chance for dry eye errors Available with many ARK and LM configurations
Tech Specs
Measuring Range Sphere -29.00 to +26.75D (0.12D / 0.25D / 1D / 2D / 3D steps) Cylinder 0 to ±8.75 D (0.25D / 1D / 2D / 3D steps) Axis 0 to 180° (1° / 5° / 15° steps) PD 48 to 80mm (far vision) 50 to 74mm (near vision) (0.5 / 1mm steps) 54 to 80mm (Far PD at which both batteries can converge) Rotary Prism 0 to 20D (0.1 / 0.5 / 2D increments) 0 – 20D (0.5D, 1D, 2D steps) Auxiliary Lenses Occluder, Polarizing Lenses, Pin Hole (1mm), 10 base-in prism, Red Maddox Horizontal (right eye), 6 base-up prism, Red Maddox Vertical (left eye), Cross mark for P.D., Red Lens (right eye), .50 fixed cross cylinder, Green Lens (left eye), Retinoscopic Lens, (+1.5D, +2.0D) Refraction Distance for Near Vision 350 to 700mm (50mm increments) Field of View 40° (VD = 12mm) 39° (VD = 13.75mm) Forehead Rest Adjustment 15mm Vertex Distance 12-20mm (12, 13.75, 16, 18, 20mm) General Information Horizontal Level Adjustment ±2.5° Display 8.4-inch color LCD with touch screen Power Supply 100 / 120 / 230 VAC 50 / 60Hz Power Consumption 120 VA Dimensions & Weight Main body 15.94 x 4.0 x 10.86" / 12.8" with bracket / 7.7 lbs. Control box 8.66 x 8.1 x 7.87" / 4.2 lbs. Relay box 7.63 x 8.93 x 2.83" / 8.8 lbs. Printer 4.0 x 3.38 x 4.76" / 0.66 lbs. RT Arm Electromagnetic lock, fully moveable up/down and back/forth Motorized Main Table Table top: 40.35 x 19.7 x 26.77 – 33.86" (stroke 7.1") Side Table (Fixed) Table top: 42.52 x 28.46 x 29.9" Overall 42.52 x 60.7 x 61.2 – 72.83" / 352.7 lbs. Power Supply 100 / 120 / 230 VAC ±10%, 50 / 60 Hz Power Consumption 600 VA12.4" (W) x 20.4" (D) x 22.8" (H)
