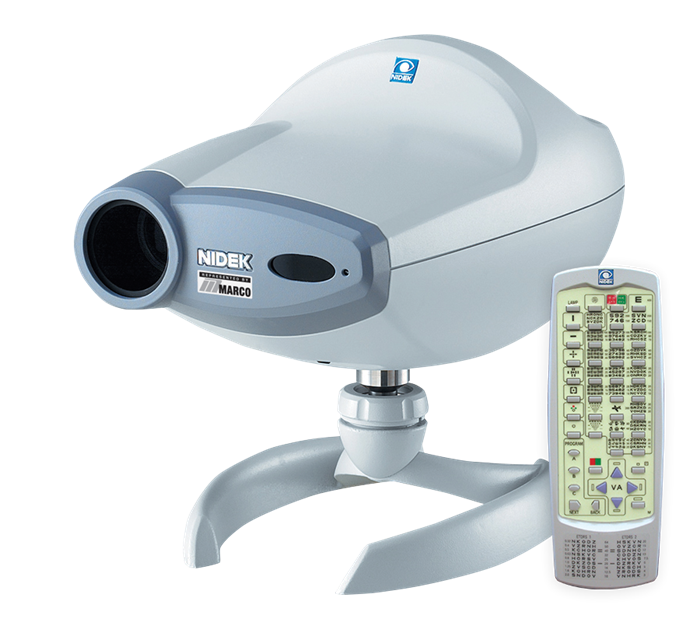

New maintenance-free LED Background Illuminator produces a brighter, more consistent high-resolution image. Instant random access of 33 popular charts via infrared remote control. The smaller, more streamlined remote control is more comfortable to handle. Chart masking buttons allow the user to isolate individual lines horizontally, vertically, as well as individual letters, numbers, and characters. Two "maneuvering" buttons allow the user to move up or down the Snellen acuity range a line at a time in a horizontal mask. Three programming buttons isolate separate programs for individual users. Sophisticated new design is much smaller and lighter New maintenance-free LED illumination system produces a brighter, more consistent high-resolution image Instant random access of 33 popular charts via infrared remote control Chart masking buttons allow the user to isolate individual lines horizontally, vertically, as well as individual letters, numbers, and characters Three programming buttons isolate separate programs for individual users 11 specialty/polarization charts 9 Snellen charts: (5) 20/20 lines, (3) 20/15 lines, (2) 20/10 lines 5 Numbers charts: (2) 20/20 lines, (1) 20/15 line, (1) 20/10 line 4 Illiterate E charts: (2) 20/20 lines, (1) 20/15 line, (1) 20/10 line 3 Children’s charts: (1) 20/20 line
Chart 33 pcs. Projection Distance 9.5 to 20 ft.(16.4 ft. is standard) Projection Magnification 30X (at 16.4 ft.) Projection Size 12.9 x 8.84 in. and 10.83 in. diameter Illumination Source 3W, white LED, 6000k color temperature wave length: 373-801NM Power Source AC 100 to 240 VAC +/– 10% 50/60Hz Power Consumption 70VA Dimensions Main body 7.56 (H) x 6.97 (W) x 10.94 (D) in. Control unit 0.70 (H) x 2.51 (W) x 7.8 (D) in. Weight Main body 7.72 lbs. Control unit .27 lbs. Finish Main body White grey Control unit White grey Chart Selection Devices Remote control or control panel from TRS Refraction System (when integrated) Accessories Remote control, Polarizing glasses, wood screws (x4), power cord, batteries for remote (x2), chart sheet, screen, connector cap Optional Accessories Wall mount bracket, desk mount, unit mount
