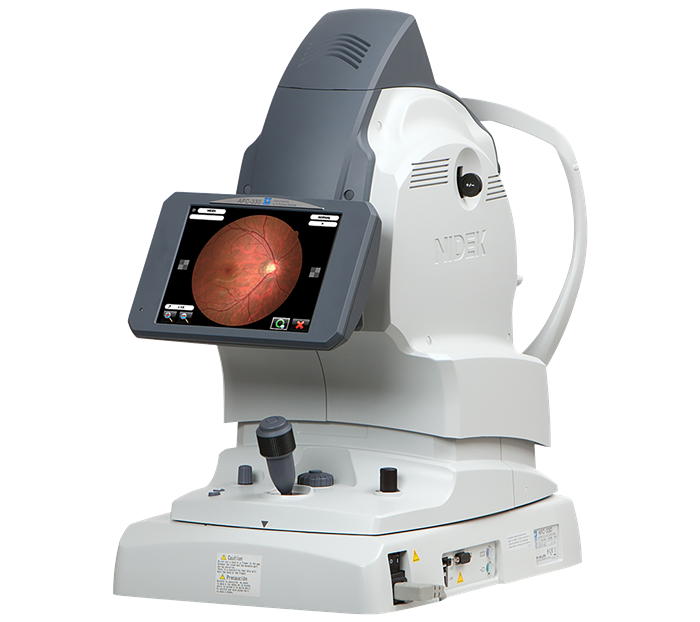

AFC-330 AUTOMATED FUNDUS CAMERA
Details
The AFC-330 sets a new standard in speed, automation, and accuracy - achieved with X-Y-Z auto alignment, auto image capture, auto stitch panoramic images, custom-field imaging, auto pairs, and external photography. Low flash intensity, whisper operation, and auto small pupil mode all facilitate capture. Internal PC and NAVIS-EX SW provide data management. 3D AutoAlign in X-Y-Z Enhanced speed of operation Alignment indicators for manual overrides Auto Image Capture Auto blink detection Auto small pupil mode detection AutoPanorama Automatic programmed pattern Auto montaged using NAVIS-EX AutoStereo Pairs Automatic spatial separation Consistent results regardless of operator External Photos Automatic adjustments for proper settings Automatic re-adjustments to retina mode NAVIS-X Chronological history data review & processing EMR integration
Tech Specs
Type Non-mydriatic Automated Fundus Camera Angle of view 45º (33º in small-pupil photography mode) Working distance 45.7mm (from objective lens to cornea) Minimum pupil diameter 4.0mm (3.3mm in small-pupil photography mode) Dioptric compensation -33 to +35 D total for patient’s eyes -33 to -7 D with minus dioptric lens -12 to +15 D with no dioptric lens +11 to +35 D with plus dioptric lens Focusing method Infrared focus split alignment Adjustable range: -12 to +15 D Light source For observation: Halogen lamp 12V 50W For photography: Xenon flash lamp 300W Flash intensity 17 levels from F1 (F4.0 +0.8 EV) to F17 (F16 +0.8 EV) 0.5 EV increments Internal fixation target LED (maximum 9 points) External fixation target Free-arm (optional) Horizontal movement 40mm (back and forth) 85mm (left and right) Vertical movement 32mm Chinrest movement 62mm (up and down, motorized) AutoTrack X-Y-Z direction Auto Capture Automatic image capture Camera Built-in 12 megapixel CCD camera Display Tiltable 8.4-inch color LCD touchscreen Interface LAN, USB 2.0 Power Supply AC 100-240 V ±10%, 50 / 60 Hz Power Consumption 150 VA Dimensions Mass 316mm (W) x 518mm (D) x 579mm (H) 29 kg 12.4” (W) x 20.4” (D) x 22.8” (H) Weight 64 lbs
