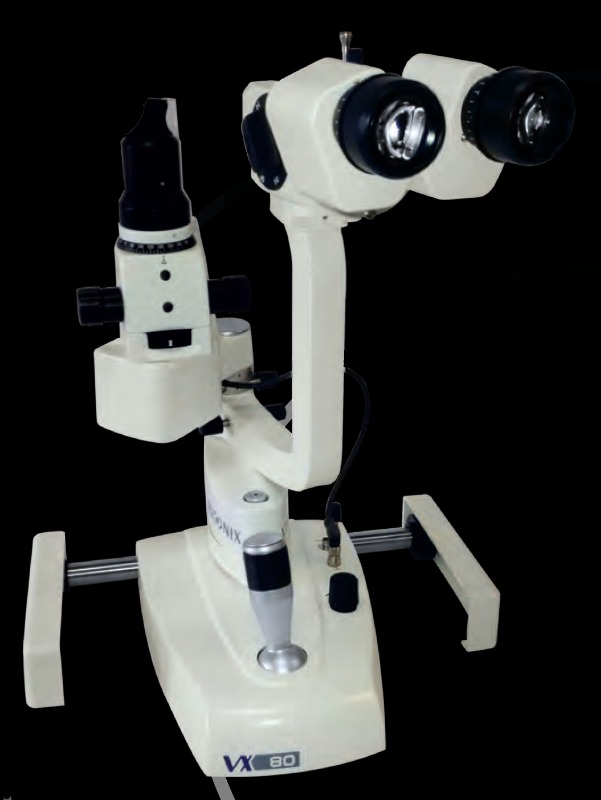

The VX80 has efficiently arranged operating controls and short paths which make for easy working. Slit width, height, and rotation adjustability combined with easily found slit illumination and filters makes for comfortable and efficient operation. vx80 Features Include: Single-handed operation Three Built-in filters: fluorescence (blue), red-free (green) grey (anti-heat), and yellow (contrast) Adaptation to your visual requirements by either parallel or converging ocular system Easy implementation of discreet fluo filter changer 12.5x eyepiece magnification Swivelling prism head Variable illumination levels with built-in controller Powerful slit projector with high illumination and consistent luminance 3x and 5x magnification available
Field of View Diameter 6x =37mm, 10x =24mm 16x =14mm, 25x=8mm, 40x =5.2mm PD Adjustment Range 48.5-80mm Diopter Adjustment +/-6D Slit Angle 0-90° Slit Width 0-14mm Slit Length 1-12mm Working Distance 88mm Fixed lens stop Ø 0.3 mm Illumination LED Power 50/60Hz Maximum power consumption: 100-120V CA -- 1A / 230-240V CA -- 0.5A Ship Weight 18lbs
