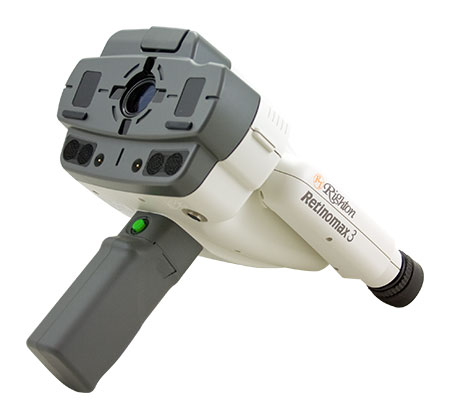

Retinomax 3+ Portable Auto Refractor / Keratometer
Details
The Retinomax family are the new generation of hand-held autorefractors. Considered the gold standard in hand-held autorefraction, the Retinomax Series outperforms the competition and offers unsurpassed accuracy and ease of use. retinomax 3 plus portable autorefractor keratometerFeatures Include: Most accurate hand-held Autorefractor available Wireless Measure in any direction Pass through alignment New Auto Quick Measurement New Auto Pupil Measurement, Display and Printout Auto Charging New Lithium Ion Battery extends battery life to 80 minutes Parallel sensor detects inclination of Main Body and Displays Value
Tech Specs
Refraction Measurement Sphere: -18D to +23D Cylinder: ±12D Axis: 1°-180° Increments Auto/0.25D Selectable Axis: 1° Kera Measurement Range Radius Curvature: 5-11mm (in .01mm increments) Corneal Astigmatism: .25D Increments Axis: 1° to 180° (in 1° Increments) General Measurement Area 2.5mm Measurement Modes Auto/Continuous/Quick R-K Mode RK/R/K Measurement Time RK: .25sec per indication R: .12sec per indication (.07 sec. in quick mode) Mire Ring 18 points dots: 30mm Diameter Fixation Target Tree or Bear target selectable at the time of purchase Consistency Value 10 points Pupil Observation Retro Mode Reaching Distance 10.9 inch. (278mm) Working Distance 2"(50mm) from cover glass Dimensions Autorefractor: 6.7" x 9" x 9.5" Charging Station w/Printer attached: 11" x 10" Charging Station: 7" x 10" Maximum Footprint: 11"w x 10"d x 12.5"h Weight 2.13lbs
