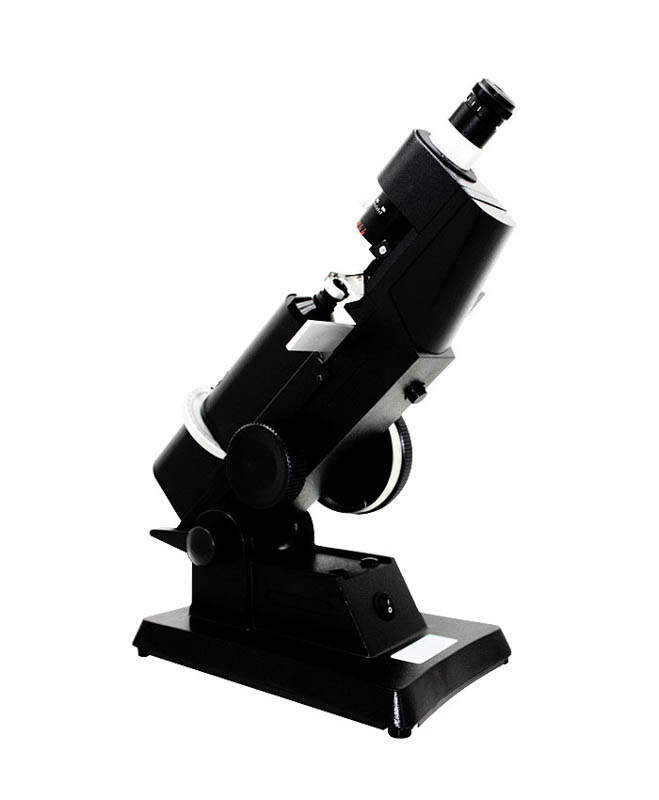

LR-30 Manual Lensmeter

LR-30 Manual Lensmeter

Brand:   Briot
Condition:   New
Laboratory or high-volume environments will appreicate the LR-30, a heavy duty manual lensometer.
Quantity:
Have a question? Feel free to Ask a question
Please Sign In To Inquire Price
If you just logged in, please refresh the page

Details

Laboratory or high-volume environments will appreicate the LR-30, a heavy duty manual lensometer. An easily operated marking device uses nylon pins to eliminate scratches or marring on the lens. The lensometer is also able to measure the power of contact lenses. Operators can adjust position angle for comfort. LR 30 LEFT PRODUCTS 800px 2Features Include: Cylinder Axis Range: 0-180° Eyepiece Adjustment: +-5D Range of measurement: +-20D Lens Range: 30mm-90mm diameter Prismatic Power Range: 0-5△ prism diopters, 1△ graduations with prism compensation of 0-20△ Tolerances: .125D Outer, Inner with graduation of +-5D Adjustable tilt angle of 0-90° Weight: 16.17lbs

Tech Specs

Range of Measurement Sphere (S) -25~+25D (0.01/0.06/0.12/0.25Dstep) Cylinder (C) 0~+10D(0.01/0.06/0.12/0.25Dstep) Axis (A) 1~+180 (1 step) Addition 0~+10D(0.01/0.06/0.12/0.25Dstep) Prism 0~20^(0.01/0.12/0.25^step) PD 42mm to 82mm Materials Glasses Lens, Hard/Soft Contact Lens Screen Articulating 7" Color LCD Touchscreen Printer Thermal Printer Dimensions (W) 9.26" x (D) 9.6" x (H) 19" Weight 13.2 lbs Output RS-232C Interface Power Supply 100-240V 50/60 Hz
