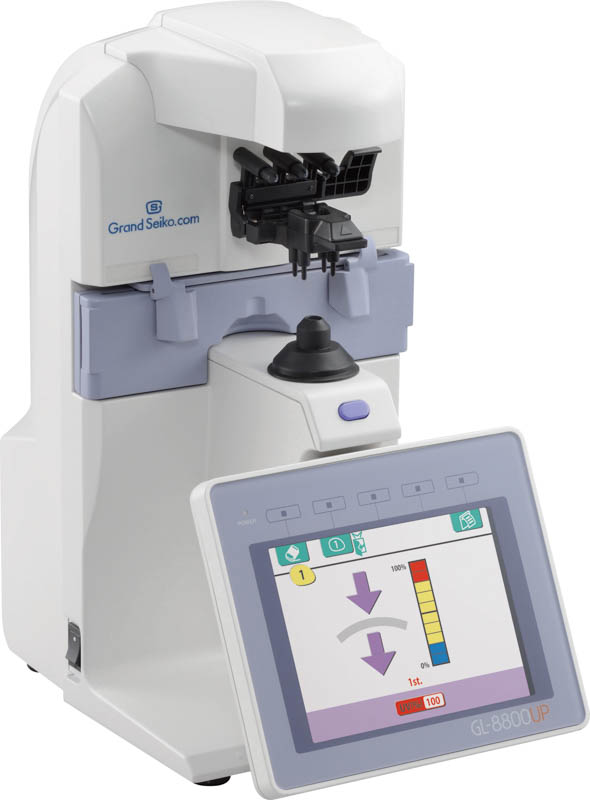

The pinnacle of the GL Series autolensmeters. The GL-8800UP has improved ergonomics with its tiltable LCD screen. More improvements include dramatically improved measurement of tinted and progressive lenses with a new green wavelength sensor. Near PD's are now saved and adjustment of ABBE values is no longer required. In contrast to the GL-7700, the GL-8800UP features automatic PD measurement and UV measurement. GL-8800UP Automatic LensometerFeatures Include: Detects differences as small as +/-.01D Measures UV Measures PD Improved ability to measure dark and tinted lenses Included stable lens plate easily measures prism New green 525nm wavelength measurement method. Measures ophthalmic lenses as well as hard/soft contact lenses Ability to change abbe values Shows both right and left lens measurements on the screen Easy to understand icons Color LCD screen High speed thermal printer keeps with records and through job production Automatic recognition of progressive lenses making measurement easy and comfortable
Wavelenth 525nm Green Range of Measurement Sphere(S)-25~+25D(0.01/0.12/0.25Dstep) Cylinder (C) 0~+10D(0.01/0.12/0.25Dstep) Axis (A) 1~+180 (1 step) Addition 0~+10D(0.01/0.12/0.25Dstep) Prism 0~10^(0.01/0.12/0.25^step) Materials Glasses Lens, Hard/Soft Contact Lens Lens Size Max 100mm Screen 5.7 inch Articulating LCD Monitor (LCD) Printer Thermal Printer (Width 58mm) Dimensions (W) 172mm X (D) 222mm x (H) 332mm Weight About 4.5kg Output RS-232C Interface Power Supply 100~240V 50/60 Hz Consumption 40 VA Power Save OFF, 3,5,10min.(Selectable)
