Canon CR-2 Plus AF
Details

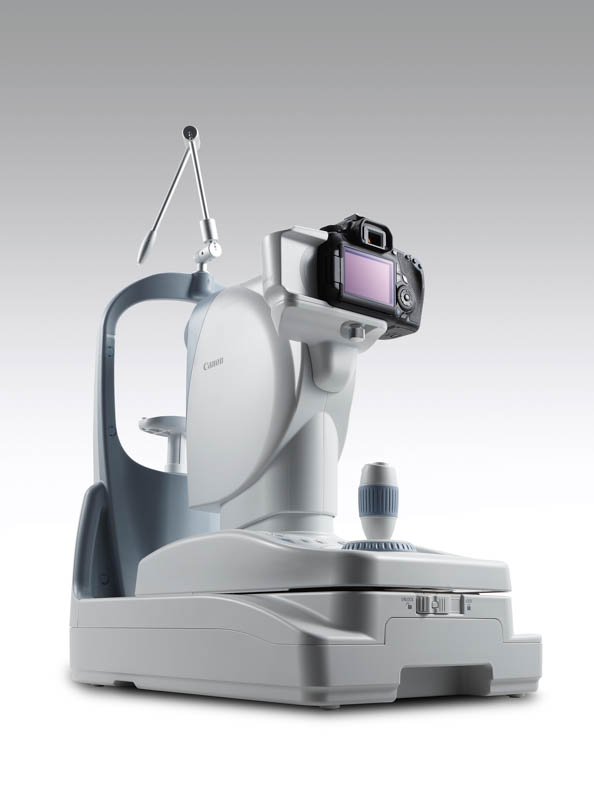

The Canon CR-2 PLUS AF Digital Retinal Camera is designed to help you consistently capture and analyze truly superb images—quickly, efficiently, and automatically. Designed around advanced CMOS image capture technology and the legendary Canon EOS optics, the CR-2 PLUS AF Digital Retinal Camera provides its users a remarkable set of advanced features specifically designed to capture, enhance, and analyze all fundus images such as fundus autoflourescence(FAF) screening. Key Features: Auto-Capture Auto-Focus Auto-Exposure Auto-Fundus Image error detection Fundus Auto-Fluorescence capability Quick preview ISO sensitivity support from 200-6400 RGB color filters + Red-free Full integration with imageSPECTRUM software 18 Megapixel images in color, detail, and contrast 45º Field of view 2x Digital magnification 3" Color lcd monitor Anterior Double Image Matching
Tech Specs
Type Digital Retinal Camera, Non-Mydriatic Photographic Capabilities Color, Digital Red-Free, Digital Cobalt, Fundus Auto-Fluorescence(FAF) Angle of View 45° Magnification 2X Digital Minimal Pupil Size 4.0mm(3.3mm SP Mode) Focus Adjustment Type Spit-Line Adjustment Patient Diopter Compensation Range Without Compensation Lens -10 to +15D With Minus Compensation Lens -31 to -7D With Plus Compensation Lens +11 to +33D Light Source Observation: Infrared Photography: Xenon Tube Canthus Mark 420mm From Base Internal Eye Fixation LED Dot Matrix External Eye Fixation White LED(Sold Seperately) Working Distance 35mm Working Distance Adjustment Anterior Observation: Double Image Math Method Fundus Observation: Working Distance Dots Sensor Resolution 18.0-megapixels Camera Dedicated EOS Camera for CR-2 Plus
