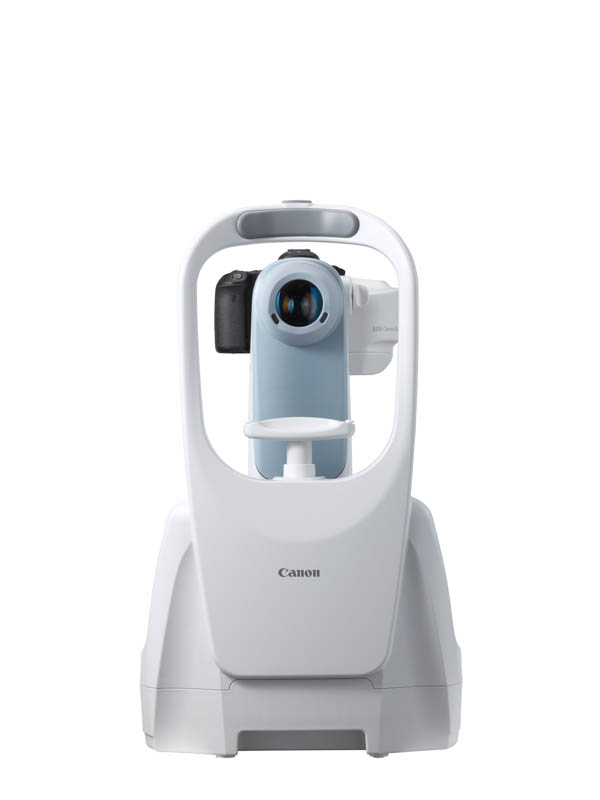

Canon CR-2 AF
Details
Use some of the best photographic technology available from Canon with The Canon CR-2 AF Digital Non-Mydriatic Retinal Camera. This device takes high resolution photos of the retina to make diagnosis easier. With its energy-efficient design, the CR-2 can help reduce energy costs in medical facilities and contribute to a lower total-cost-of ownership. CR 2 Plus AF 036 800pxKey Features: Autofocus 15.1+ Megapixel images in color, detail, and contrast ISO sensitivity support from 1600-6400 RGB color filters + Red-free 45º Field of view 2x Digital magnification 3" Color LCD monitor
Tech Specs
Type Digital Retinal Camera, Non-Mydriatic Photographic Capabilities Color, Digital Red-Free, Digital Cobalt, Fundus Auto-Fluorescence(FAF) Angle of View 45° Magnification 2X Digital Minimal Pupil Size 4.0mm(3.3mm SP Mode) Focus Adjustment Type Spit-Line Adjustment Patient Diopter Compensation Range Without Compensation Lens -10 to +15D With Minus Compensation Lens -31 to -7D With Plus Compensation Lens +11 to +33D Light Source Observation: Infrared Photography: Xenon Tube Canthus Mark 420mm From Base Internal Eye Fixation LED Dot Matrix External Eye Fixation White LED(Sold Seperately) Working Distance 35mm Fixation Lamp Internal Eye Fixation Lamp, LED DOT Matrix,Green External Eye Fixation Lamp (Sold Seperately) Sensor Resolution 15.1-megapixels or higher Camera Dedicated EOS Camera for CR-2 Monitor 3.0" Color LCD Monitor HDMI port for Optional External Monitor Auto-Function Automatic Exposure Mount Movement Front and Back: 70mm Side to Side: 100mm Up and Down: 30mm Chin Rest: 60mm PC Interface USB 1.1, 2.0 Power Supply AC 100-240V, 50/60Hz Operating Conditions 50° to 86° Farenheit, 30-90% Humidity, Atmosphereic Pressure: 800 to 1060 hPa Dimensions (H)18.6" x (W)12" x (D)19.7" Weight 33lbs
