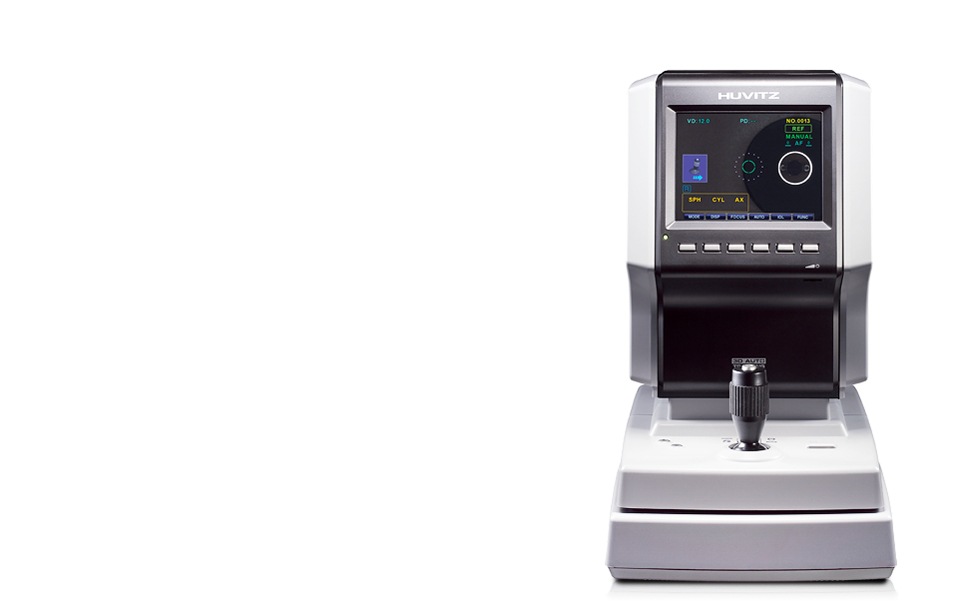

HRK-7000/HRK-7000A (Auto Ref/Keratometer)
Details
Optical System HUVITZ’s own developed MICRO LENSLET ARRAY a number of separated focal spots, of which the pattern provides valuable information about customer’s ocular system. Peripheral keratometry Measurement HRK-7000 / HRK-7000A provides peripheral keratometry measurement data that can be greatly useful for fitting contact lenses. Graphical Display of Refraction Map The graphical display of refraction errors enhances customers’ understanding and reliability. Auto Tracking The cutting edge auto sensing and 3 dimensional movement mechanism enable to track down a measuring focus of an eye automatically and complete the measurement.
Tech Specs
MEASUREMENT MODE K/R Mode Continuous Keratometry & Refractometry REF Mode Refractometry KER Mode Keratometry CLBC Mode Contact Lens Base Curve Measurement KER P Mode Peripheral Keratometry REFRACTOMETRY Vertex Distanc(VD) 0.0, 12.0, 13.5, 15.0 Sphere(SPH) -25.00~+22.00 (When VD=12mm) (Increments:0.12 and 0.25D) Cylinder(CYL) 0.00~10.00D( Increments:0.12 and 0.25D) CLBC Mode 1~180。( Increments:1。) Cylinder Form -, +, ± Pupil Distance 10~85mm Minimum Pupil Diameter ø2.0mm KERATOMETRY Radius of Curvature 5~10.2mm (Increments : 0.01mm) Corneal Power 33.00~67.50D (When corneal equivalent refractive index is 1.3375) (Increments : 0.05/0.12/0.25D) Corneal Astigmatism 0.00~-15.00D(Increments : 0.05/0/12.0/25D) Axis 0~180。(Increments:1。) Pupil, Iris Diameter 2.0~14.0mm (Increments:0.1mm) Memory of Data 10 measurements for each eye MOVEMENT RANGE Up-Down ±15mm Left-Right ±5mm ±2mm Forward-Backward ±5mm ±2mm OTHERS Display 6.5 inch Color TFT LCD Internal Printer Thermal Line Printer Power Saving Automatic switch-off(5min) Power Supply AC100-240V, 50/60Hz (Free Voltage) 60W Dimension/ Weight 252(W) x 500(D) x 432(H)mm / 20kg Designs and details can be changed without prior notice for improvements.
