HIS-5000 (Huvitz Imaging System)
Details

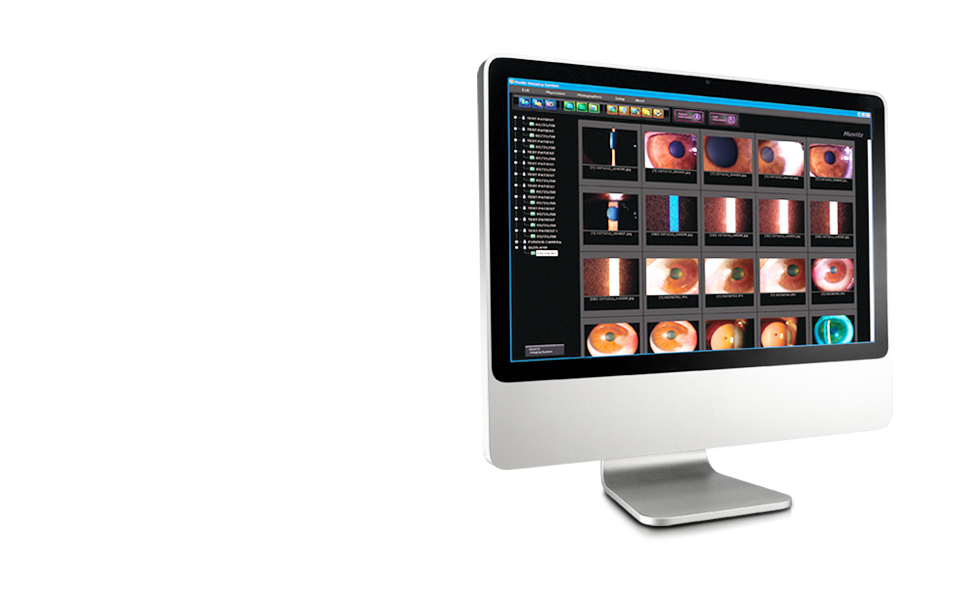

Patient Management MS Access Database system allows you to search symptoms, diagnosed information, and related contents. You can also easily manage data and history of patients. Digital Camera The IEEE 1394 interface in the Huvitz camera system offers you a high mega pixel resolution images with increased speed and a more stable data transmission than a conventional. Camera Control High performance progressive scan CCD camera provides quick image capture of diagnosed images and videos in real time with a simple click on joystick button.
Tech Specs
DIGITAL CAMERA Image Sensor 1/2” Interline CCD Image Size up to 1,388 x 1,036 pixels Cell Size 4.65μm x 4.65μm Resolution Depth 8bit or 12bit Raw RGB, YUV 4 : 2 : 2 Transmit Method IEEE 1394 (6pin) Transmit Speed 400Mbps Frame Rate 15fps, 7.5fps, 3.75fps Lens Mount C-Mount Photographing External Trigger or Software Trigger Dimension 44mm (W) x 29mm (H) x 63mm (D) Power Consumption 3W(12V DC, from IEEE 1394 Cable) HIS-5000 CPU Pentium IV, 2GHz Memory 512MB(over 1GB recommended) Video card ATI Radeon 9200(128MB) or similar System Microsoft Windows NT(with service pack 6), Windows 2000(with service pack 4) Transmit method Windows XP, Microsoft internet Explorer 6( Explorer 7 recommended ) Standard IEEE 1394a Firewire port OHCI 1.1 Compatible (with auxiliary 12V power connector if connected to a laptop computer) Monitor LCD or CRT (minimum resolution 1,280 x1,024 pixels, over 1,600 x 1,200 pixels recommended) Designs and details can be changed without prior notice for improvements.
