General Meditech

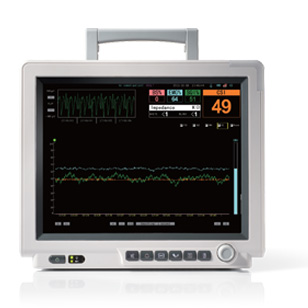

G9L Depth Of Anesthesia Monitor

G9L Depth Of Anesthesia Monitor

Brand:   General Meditech
Condition:   New
G9L anesthesia depth monitorThe anesthesilogists Good helperPatients patron saintMonitor depth of anesthesia in department of anesthesiologyReflecting awareness degree in ICUGeneral Meditech
Quantity:
Have a question? Feel free to Ask a question
Please Sign In To Inquire Price
If you just logged in, please refresh the page

Details

CSI(cerebral state index), BS(Burst surppression) , EMG(electromygrophic signal)and vital signs parameters of patient can be monitored. CSM is the unique device to monitor people’s level of consciousness according to the score standard of MMOAS 15’’ color, high brightness, wide view angle TFT LCD scree Streamlined and fashionable design, foldable hook handle, easy to carry. Remote control and knob operation, friendly man-machine dialogue interface, easier to operation.     Clear depth of anesthesia monitoring interface, the CSI displayed all the time, real-time monitor patient‘s depth of anesthesia Applicable to adults, children, neonate monitoring.

Additional Information

G9L Depth Of Anesthesia Monitor G9L anesthesia depth monitorThe anesthesilogists Good helperPatients patron saintMonitor depth of anesthesia in department of anesthesiologyReflecting awareness degree in ICUGeneral Meditech, Inc and Danmeter from Denmark built the G9L, the depth of anesthesia monitor. Danmeter released CSM after A-Line , open a new era of the depth of anesthesia monitoring, getting the precise cerebral state index(CSI) through the fuzzy logic operation on the EEG, combing with the ECG, NIBP, Spo2, TEMP, ect. basic vital signs parameters of patient, guide the anesthetic medication to reduce the risk of surgery, easily operation, economic accessories, to bring you a whole new experience of depth of anesthesia monitoring.

Tech Specs

EEG sensitivity:±400µV Noise: < 2µVp-p, < 0.4µV RMS, 1–250 Hz CMR: >140dB Input impedance: >50MOhm Sample rate: 2000 samples/sec.: (14 bits equivalent) CSI and update: 0-100. Filter 6-42 Hz, 1 sec. update EMG: 0-100 logarithmic. Filter 75-85 Hz, 1 sec. update BS%: 0-100%. Filter 2-42 Hz, 1 sec. update Alarms: High / Low with user selectable limit Artefact rejection: Automatic Sensor impedance range: 0-10kOhm / measurement current 0,01µA Memory: Data recording 18 hours ECG: Input; 3 wires/5wires ECG cable Lead section; I、II、III、aVR、aVL、aVF、V Gain selection; ×1/4 、×1/2、×1、×2、×4 and automatic Sweep speed: 6.25 mm/s 、12.5 mm/s 、25 mm/s、50mm/sHeart rate range: 15-300 BPM, Heart calibration: ±1 mvHeart rate accuracy: ± 1 % NIBP (Non-invasive blood pressure) Philosophy: Osillometric method Measurement type : adult, pediatric, neonatal Measurement parameters:: Systolic, Diastolic, Mean Measurement method: manual, automatic, continuous measurement Unit: mmHg/kPa selectable Accuracy: ±2 or ±3mmHg GMI SpO2 Display type: Waveform, data Measurement range: 0~100% Resolution: 1 BPM Pulse rate range: 30~250bpm Accuracy: ±1bpm Temperature (surface and rectal) Number of channel: 2 channels, surface and rectal temperature can be monitored simultaneouslyAccuracy: ± 0.1 ℃ Display: T1、T2、△T Respiration Rate Thoracic impedance & nasal tube double method selectableMeasurement range: 0-120bpmAccuracy: ± 1 BPM Resolution: 1 BPM ETCO2 (Option) Measurement method: main/side streamMeasurement range: 0%-10.0%Accuracy:± 2mmHg Power requirements Input: 100~240 V AC, 50/60Hz

Shipping Information

30 days

Warranty & Returns

18 months warranty, 30 days return policy
