CardIQ Xpress 2.0 Reveal
Details

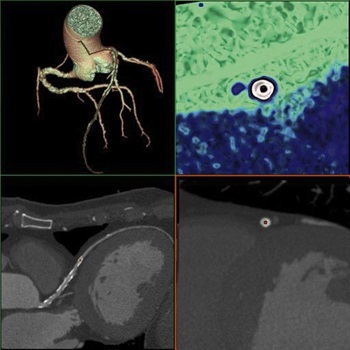

Multi-slice detector CT technology has become a go-to modality for reliable, non-invasive, cardiovascular imaging. It’s easy to use, accessible, and delivers diagnostically valuable data. Key to maximizing the benefits that this technology offers is using a post-processing and analysis tool tailored specifically for cardiac imaging. CardIQ Xpress 2.0 Reveal is an easy to use, efficient way to display, reformat, and analyze 2D or 3D cardiac CT images for qualitative or quantitative assessment of heart anatomy and coronary arteries from a single or multiple cardiac phase image data set. When used with SnapShot Freeze images created on select GE CT Systems, CardIQ Xpress 2.0 Reveal can automatically process and display motion-blur reduced images of coronary anatomy. Highlights Non-invasive alternative to help in the diagnosis of coronary artery disease. Simplifies workflow. Extract, render, and display 2D/3D coronary vasculature tree images with one-click automatic vessel tracking. Automated display of motion blur-reduced SnapShot Freeze processed images. One-click functional cardiac evaluation. Measure coronary artery vessels to include stenosis, density of stenosis, and length of stenotic area.
Additional Information
Fully integrated post-processing package for assessing cardiac morphology, coronary artery viability, relative perfusion, bypass graft patency, post-intervention follow up, and functional assessment. Lets you automatically render data for streamlined reading, including: 3D rendered heart Angiographic view Tree VR Ejection fraction Features color enhanced perfusion defect pattern recognition allowing you to detect ischemic heart disease. Allows you to automatically reformat standard axial CT images of single or multiple cardiac phases in short, long, and two chamber long axis views for easy review. With on click, lets you perform cine functional cardiac evaluations to view multiphase beating heart images. PlaqID enhances the Hounsfield Unit values of plaque components and provides a customizable color map. One-touch angiographic view lets you display the coronary vessel tree and myocardium by automatically removing the heart chambers to provide a cath comparative view. Transparency model lets you visualize the coronary arteries in relation to the heart chambers, with the ability to fade the chambers out. Provides 4D aortic and mitral valve views with one click. You can automatically extract the left ventricle with selection of ES and ED for ejection fraction and volume measurements. Oblique reformat provides views in the standard cath angles for easy analysis of the coronary vessels. You can load multi-phase images, review the data, and decide which phase or phases will be reviewed for further processing by dropping the non-essential phases. Allows you to register images from different cardiac phases into a unique combined data set, which can be saved as a 3D object or used for further analysis.
Tech Specs
Fully integrated post-processing package for assessing cardiac morphology, coronary artery viability, relative perfusion, bypass graft patency, post-intervention follow up, and functional assessment. Lets you automatically render data for streamlined reading, including: 3D rendered heart Angiographic view Tree VR Ejection fraction Features color enhanced perfusion defect pattern recognition allowing you to detect ischemic heart disease. Allows you to automatically reformat standard axial CT images of single or multiple cardiac phases in short, long, and two chamber long axis views for easy review. With on click, lets you perform cine functional cardiac evaluations to view multiphase beating heart images.
Related Products

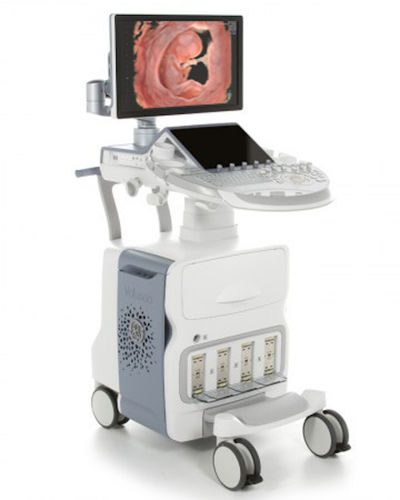

ON-PLATFORM ULTRASOUND SYSTEM / FOR GYNECOLOGICAL AND OBSTETRIC ULTRASOUND IMAGING / 3D/4D VOLUSON E10
ON-PLATFORM ULTRASOUND SYSTEM / FOR GYNECOLOGICAL AND OBSTETRIC ULTRASOUND IMAGING VOLUSON E8

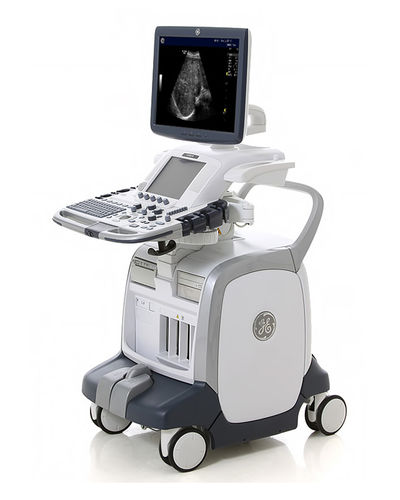

ON-PLATFORM ULTRASOUND SYSTEM / FOR MULTIPURPOSE ULTRASOUND IMAGING LOGIQ® E9

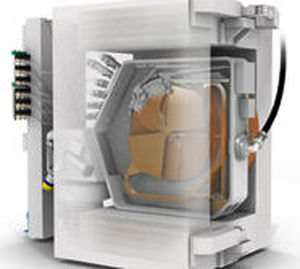

PET LABORATORY CYCLOTRON PETTRACE 800 SERIES

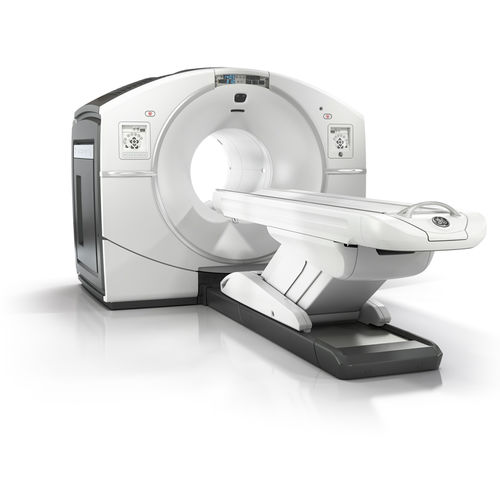

PET SCANNER / CT SCANNER / FOR PET / FOR FULL-BODY TOMOGRAPHY DISCOVERY IQ
