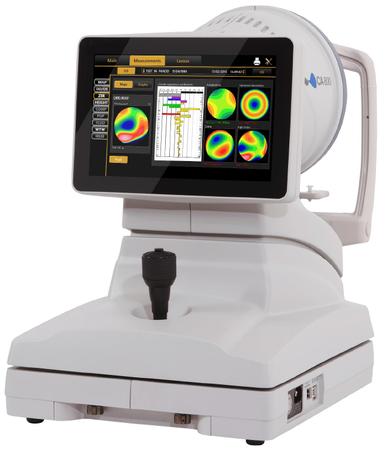

Topcon CA-800 Corneal Analyzer
Details
The Topcon CA-800 Corneal Analyzer is a placido-based topographer with 24 rings that measure up to 6,144 data points, providing you with a detailed analysis of the patient. Operation combines a 10” capacitive touch monitor and joystick making assessment of the cornea quick and simple. The CA-800 is equipped with dynamic and static pupillometry, providing clear information on the reaction time of the pupil and the contraction of the pupil. The compact design of the CA-800 incorporates an internal PC with a 320Gb SATA hard disk for patient database management. Topography Map OD/OS results on the same screen Corneal wavefront (Zernike) analysis Corneal surface height map Comparison and Differential maps Pupillometry Real time fluorescein acquisition and imaging White to white measurement Meibomian glad analysis Contact lens fitting simulation Toric IOL calculation 1” Capacitive touch screen Fully integrated patient database
Tech Specs
Keratoscope cone: 24 rings equally distributed on a 43D sphere Analyzed points: Over 100.000 Measured points: Over 6.200 Corneal coverage: Up to 9.8mm on a sphere of radius 8.00mm (42.2 diopters with N=1.3375) Diopter power range: From 1D to 120D Resolution: ,+/- 0.01D, 1 micron Accuracy / Precision axial radius: ,+/- 0.03mm altimetric data +/- 2µm at 4mm Capture system: Auto-focus with Auto-capture Output ports: USB, LAN Monitor: LCD 10.1 inch capacitive touch screen Database: Internal Pupillometry: Dynamic, Photopic, Mesopic, Scotopic Fluorescein: Image, Video Report: Corneal map, Comparison map, Contact lens, Height map, Zernike analysis, pupillometry, Toric IOL , Screenshot Working environment: 10°-40°C, Relative humidity 30-75% (no dewing), Atmospheric pressure 700-1060hPa Power source: AC 100-240V 47-63 Hz Power consumption: <100VA Dimensions: 320mm (W) x 490mm (H) x 470mm (L), 15 Kg Connections: Wi-Fi Optional, LAN integrated Printing options: USB printer, Network printer, PDF on network shared folder, PDF on USB Operating System: Windows 8 Embedded RAM: 2GB Hard Disk: 320 GB SATA Hard Drive (database storage), 32 GB Solid State Drive (operating system and application software)
