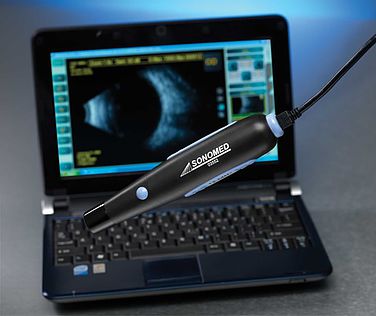

Sonomed Escalon MasterVu 5600 B-Scan Ultrasound
Details
The Sonomed Escalon MasterVu 5600 B-Scan Ultrasound from EMS allows ophthalmologists to capture both still images and video clips. This B-scan features live display, continuous zoom, and controlled image pan, along with a sealed transducer probe that produces almost no sound. On-probe activation and scan capture paired with detailed, frame-by-frame review and on-screen annotation capabilities make the MasterVu B-Scan a valuable addition to any ophthalmology practice. Capture still images and video clips Live B-scan display On-probe activation and scan capture Transducer probe is exceptionally quiet On-screen annotations Continuous zoom and controlled image pan
Tech Specs
General Specifications USB connection Touch screen compatible Integrated patient database Intuitive and powerful software Personalized exam reports Scan Probe Transducer frequency: 12MHz On-probe activation switch Tools Adjustable zoom, pan, and area select Brightness and contrast control Near/mid/far gain control On-screen annotation Data Acquisition and Display Scanning method: Sector Frame: 60°, 256 lines, 2000 samples/line Frame rate: 30 fps (max) Adjustable acoustic output for improved penetration (Scan depth: 30-60mm) Capture frames (.bmp or .jpg) or video clips up to 100 frames (.wmv) 256 levels gray scale Measurements Distance Multiple calipers Precision: 0.046mm Angle Multiple calipers and vertex Precision: ½° Resolution Electronic: 0/015mm (max) Clinical: 0.1mm Data Management Frames (.bmp or .jpg) Video clips up to 100 frames (.wmv)
