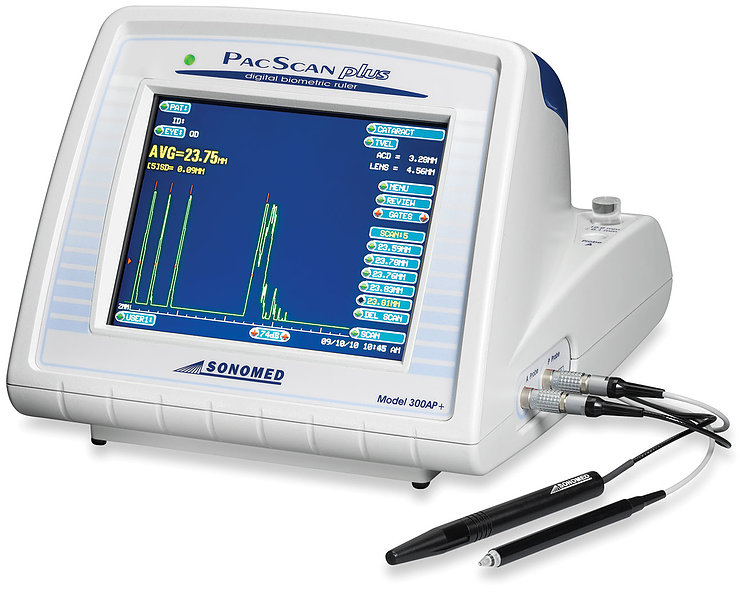

Sonomed Escalon 300AP+ A-Scan/Pachymeter
Details
The Sonomed Escalon 300AP+ A-Scan/Pachymeter offers an automated 2-in-1 solution for diagnosing optical pathologies with calculated lens results, comparative IOL review, and measure review. The A-scan features five different examination modes, direct contact and immersion A-scan, nine IOL formulas, and two options for probe style. The Pachymeter has six scan modes, adjustable corneal velocity, clinical accuracy of ±5 Microns, and two probe styles. Sonomed Escalon’s 300AP+ is portable and ergonomic while featuring a large color touch screen interface, built-in printer, USB interface, probe storage, and on-board memory. A-Scan Features 5 Examination modes Direct contact or immersion Auto-calibration Measurement review Automatic sensing algorithm 6 Refractive formulas 3 Post-Refractive formulas ACD, Lens, Vitreous, Axial, Average Axial, Standard Deviation measurements Individual zone velocities 2 A-Scan probe styles Pachymeter Features Measures central and peripheral cornea thickness Multiple corneal maps with graphical display Measurement range enables measurement of corneal flap Senses when probe is properly aligned Average and standard deviation computed for each reading 64 measurements per reading Probe sensitivity test and calibration confirmation 2 Pachymeter probe styles
Tech Specs
General Specifications High contrast color touch screen User-friendly graphical interface Scan viewer archiving software 5 programmable user profiles SD memory card Built-in thermal printer Portable design: weighs 6 lbs (2.7 kg) Power requirements PacScan System: 100-240 VAC; 50/60 Hz Optional Printer: 100-240 VAC; 50/60Hz A-Scan Specifications Scan Modes Direct contact/immersion 5 examination modes: Cataract Dense cataract Aphakic Pseudophakic (5 settings) 4-Gate Manual Measurements ACD, Len, Vitreous, Axial, Average Axial, Standard Deviation Individual zone velocities Automatic sensing algorithm Measure review Auto-calibration Accuracy & Lens Specs Clinical accuracy: ±0.10mm Electrical accuracy: ±0.023mm Lens calculations in 0.25D increments 10-Lens database IOL Formulas Standard Binkhorst Regression-II Theoretic/T Holladay Hoffer-Q Haigis Post-refractive Latkany Myopic Latkany Hyperopic Aramberri Double-K Probe Styles Standard A-scan probe for hand-held, immersion, or slit lamp mounted application Soft-touch A-scan probe for hand-held use minimizing corneal compression Pachymeter Specifications Scan Modes Map 1: Single point, single-scan Map 2: Single point, multi-scan Map 3: 5 points, single-scan Map 4: 5 points, multi-scan CCT, IOP Correction Calibration Measurements Adjustable corneal velocity Automatic sensing algorithm Measure review 64 Scans averaged with standard deviation Internal accuracy test Auto calibration Range, Accuracy, and Probe Specs Range: 15-1000 Microns Clinical accuracy: ±5 Microns Electronic accuracy: ±1 Micron 20MHz direct contact probe Probe Styles 20 MHz straight pachymeter probe for use when patient is in sitting position 20 MHz 45 degree angled pachymeter probe for use when patient is in supine position
